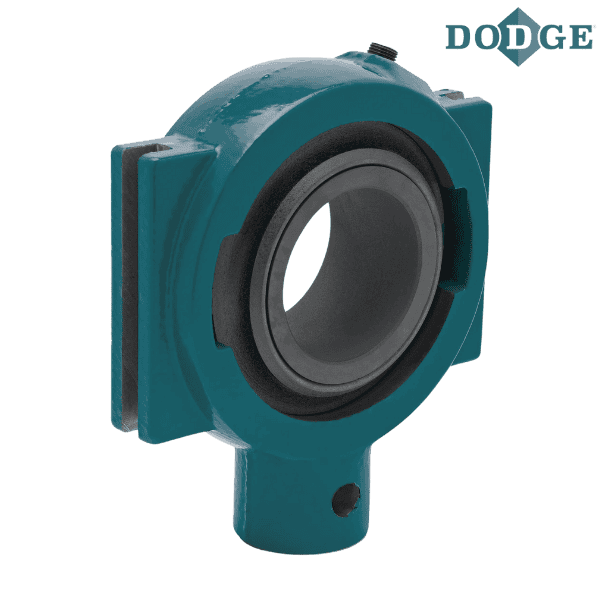

034310 DODGE - NSTU-LT10-60M

Brand - DODGE
Item Number - 034310 DODGE - NSTU-LT10-60M
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 212
Shaft Size (mm) - 60
Description - NSTU-LT10-60M
Weight (kg) - 3.18
Used On Frame - NS-415

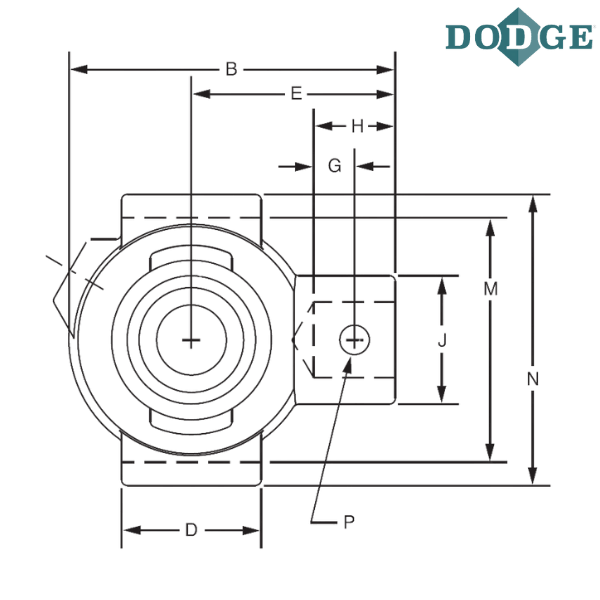

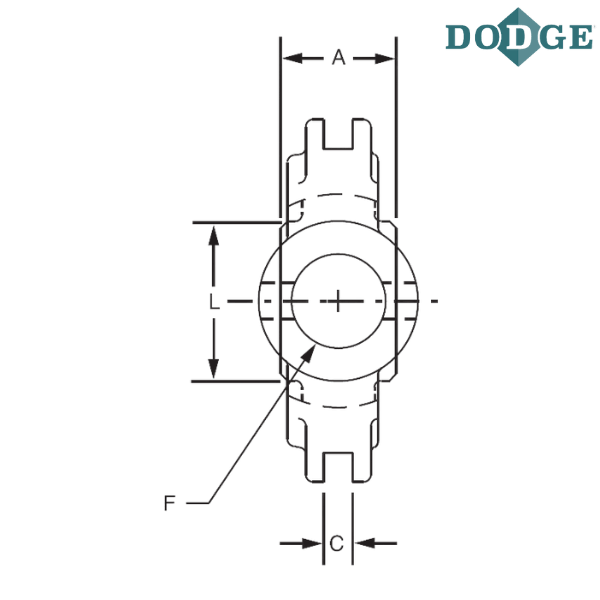

Length Through Bore (A) mm - 46
Overall Length (B) mm - 169.9
C (mm) - 7.9
D (mm) - 95.3
E (mm) - 95.3
F (Screw Diameter) inch - 1
G (mm) - 15.1
H (mm) - 32.5
J (mm) - 41.3
L (mm) - 88.9
M (mm) - 125.4
Overall Width (N) mm - 146.1
Pin Diameter (P) inch - 0.4375

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
60M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

** Images are for representation purposes only
