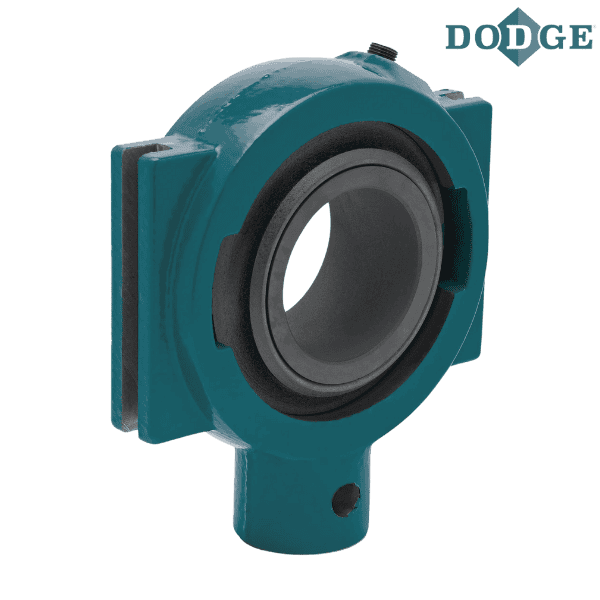

034306 DODGE - NSTU-LT10-35M

Brand - DODGE
Item Number - 034306 DODGE - NSTU-LT10-35M
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 207
Shaft Size (mm) - 35
Description - NSTU-LT10-35M
Weight (kg) - 1.36
Used On Frame - NS-308

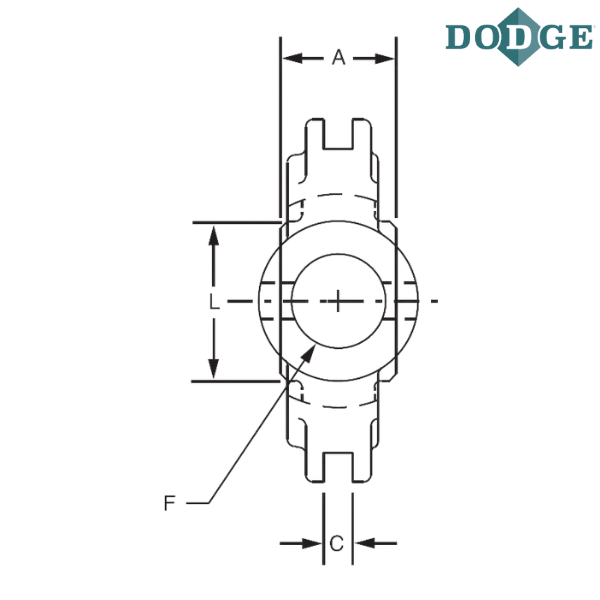

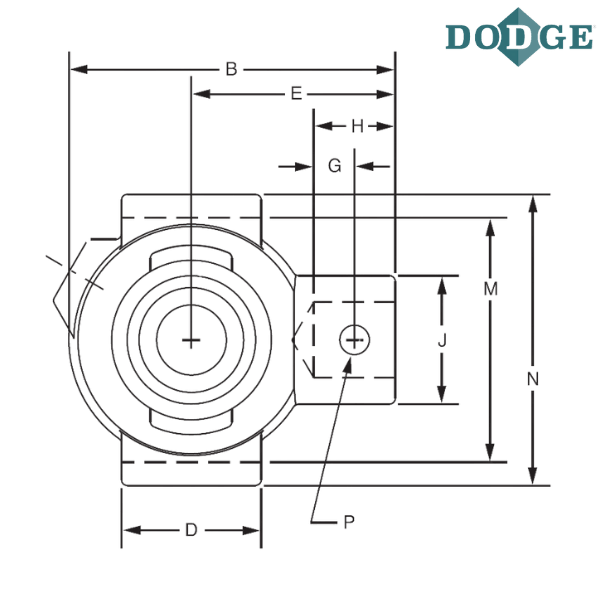

Length Through Bore (A) mm - 33.3
Overall Length (B) mm - 114.3
C (mm) - 6.4
D (mm) - 63.5
E (mm) - 68.3
F (Screw Diameter) inch - 0.75
G (mm) - 11.1
H (mm) - 23.8
J (mm) - 34.9
L (mm) - 54
M (mm) - 88.9
Overall Width (N) mm - 104.8
Pin Diameter (P) inch - 0.3125

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

** Images are for representation purposes only
