Description
Brand - DODGE
Item Number - 034285 DODGE - F4B-LT10-30M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (1000 Series)
Series - 206
Shaft Size (mm) - 30
Description - F4B-LT10-30M
Weight (kg) - 1.27

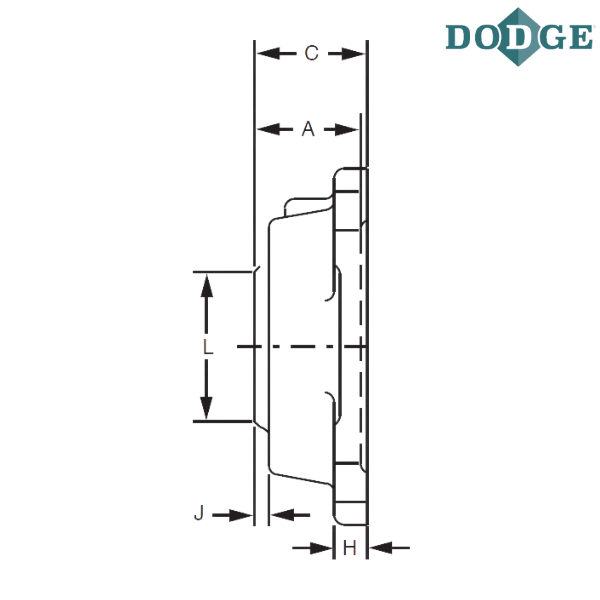

Length Through Bore (A) mm - 28.2

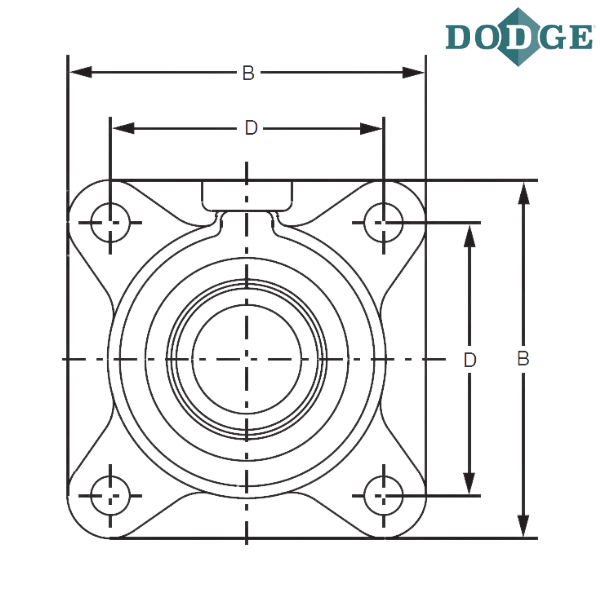

Overall Length (B) mm - 108
Thickness (C) mm - 31
Bolt Center to Center Length (D) mm - 82.6
F-Bolt Diameter (mm) - 10
H (mm) - 12.7
J (mm) - 4
L (mm) - 46
Notes :
F4B - Flange, 4 Bolt
LT10 - SOLIDLUBE LT 1000 Series
30M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

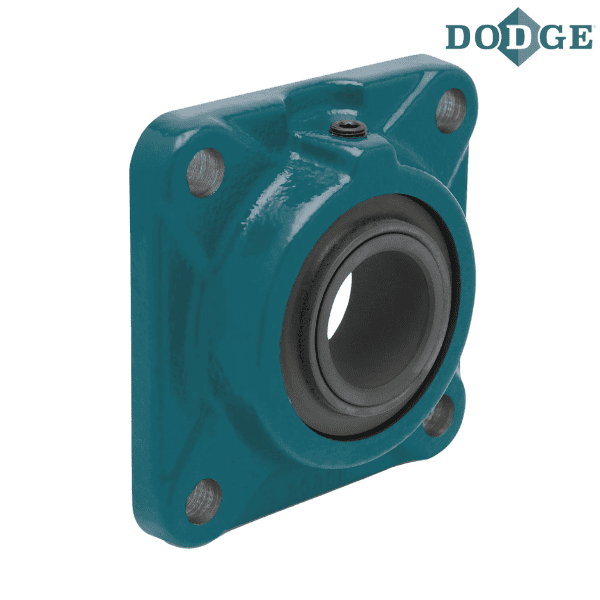

** Images are for representation purposes only
