Description
Brand - DODGE
Item Number - 034274 DODGE - F4B-LT7-25M

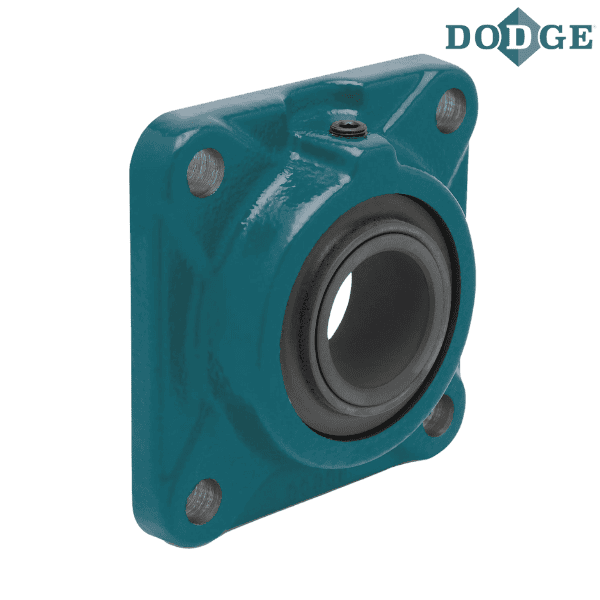

Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 205
Shaft Size (mm) - 25
Description - F4B-LT7-25M
Weight (kg) - 0.91

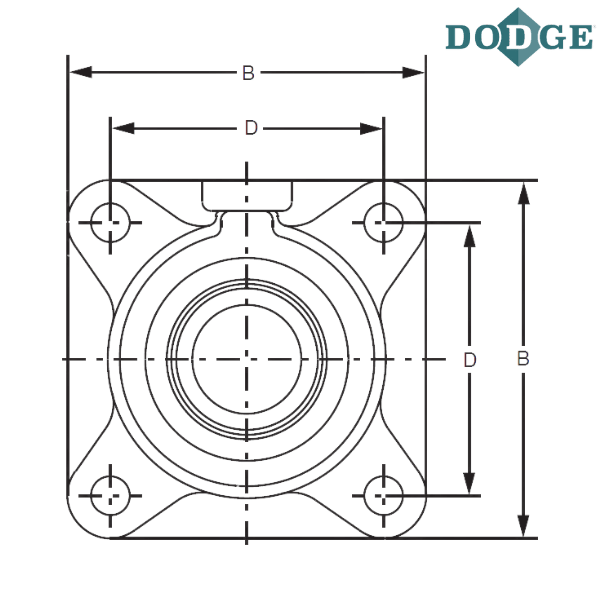

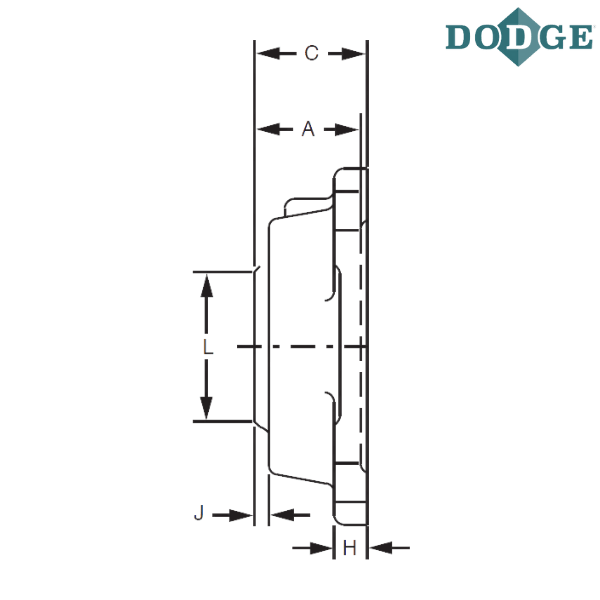

Length Through Bore (A) mm - 25.4
Overall Length (B) mm - 95.2
Thickness (C) mm - 28.6
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter (mm) - 10
H (mm) - 12.7
J (mm) - 4.8
L (mm) - 39.7
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
25M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
