Description
Brand - DODGE

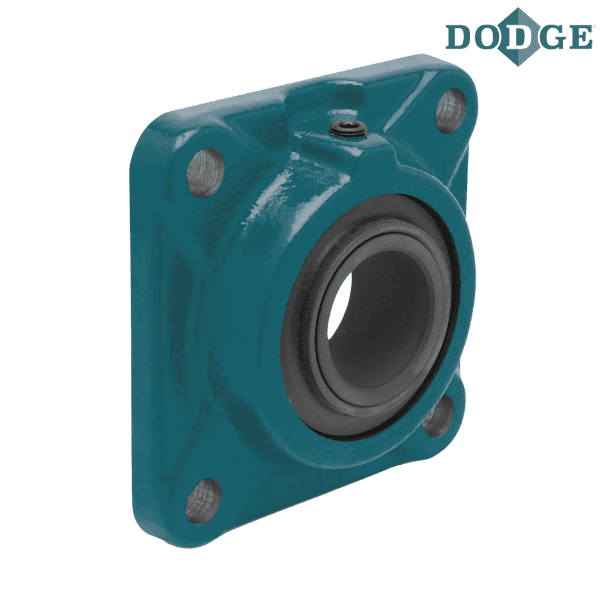

Item Number - 034273 DODGE - F4B-LT7-20M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 204
Shaft Size (mm) - 20
Description - F4B-LT7-20M
Weight (kg) - 0.68

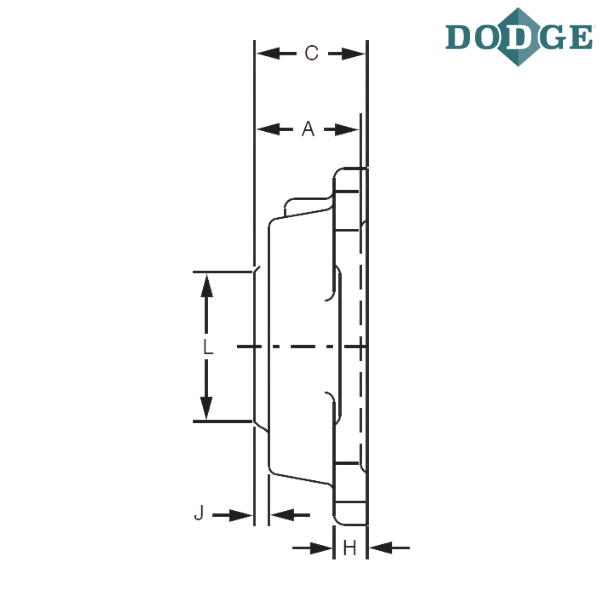

Length Through Bore (A) mm - 23

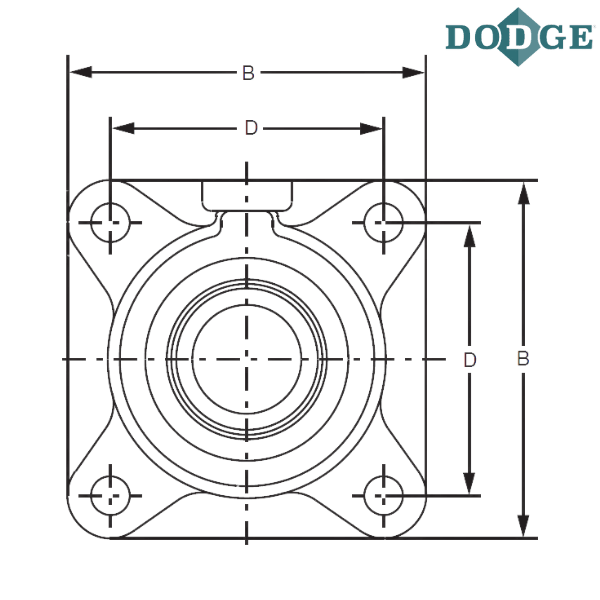

Overall Length (B) mm - 85.7
Thickness (C) mm - 28.6
Bolt Center to Center Length (D) mm - 63.5
F-Bolt Diameter (mm) - 10
H (mm) - 11.1
J (mm) - 3.2
L (mm) - 34.9
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
20M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
