Description
Brand - DODGE
Item Number - 034268 DODGE - F2B-LT10-30M
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (1000 Series)
Series - 206
Shaft Size (mm) - 30
Description - F2B-LT10-30M
Weight (kg) - 0.95

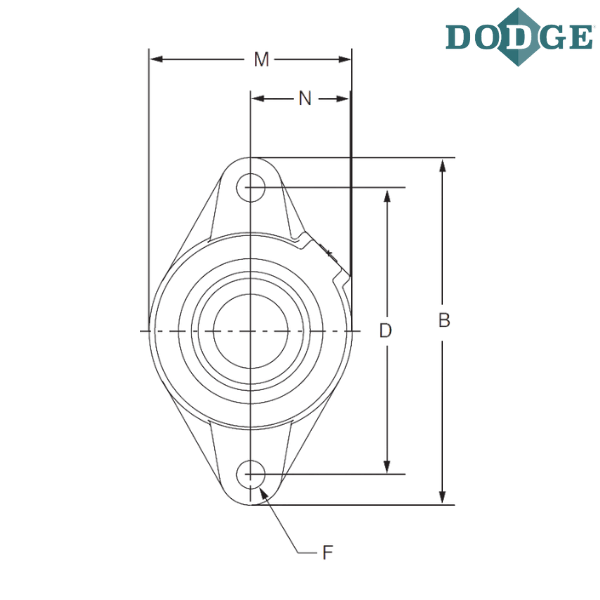

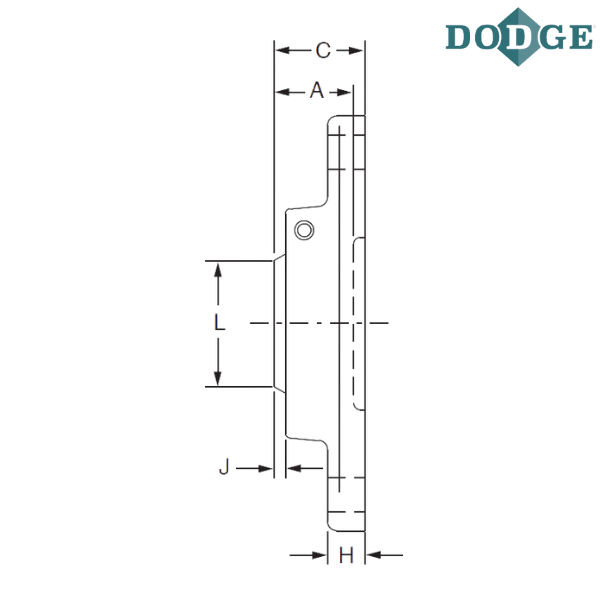

Length Through Bore (A) mm - 28.2
Overall Length (B) mm - 141.3
Thickness (C) mm - 31
Bolt Center to Center Length (D) mm - 116.7
F-Bolt Diameter (inch) - 0.4375
H (mm) - 12.7
J (mm) - 4
L (mm) - 46
Overall Width (M) mm - 79.4
N (mm) - 39.7
Notes :
F2B - Flange, 2 Bolt
LT10 - SOLIDLUBE LT 1000 Series
30M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

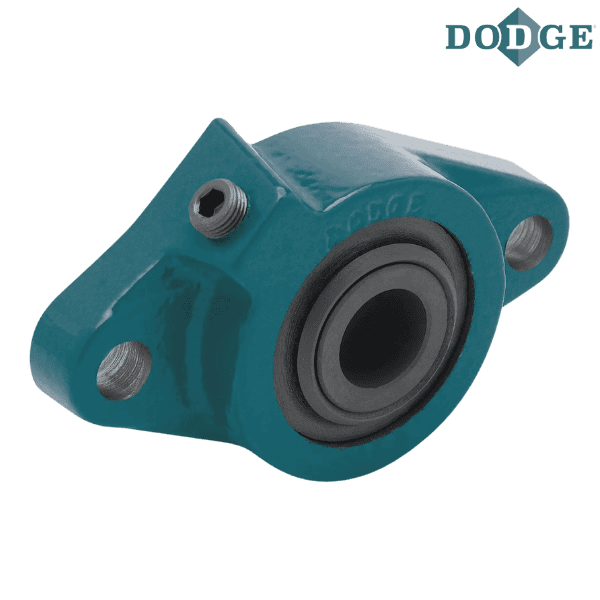

** Images are for representation purposes only
