Description
Brand - DODGE
Item Number - 034263 DODGE - F2B-LT7-35M

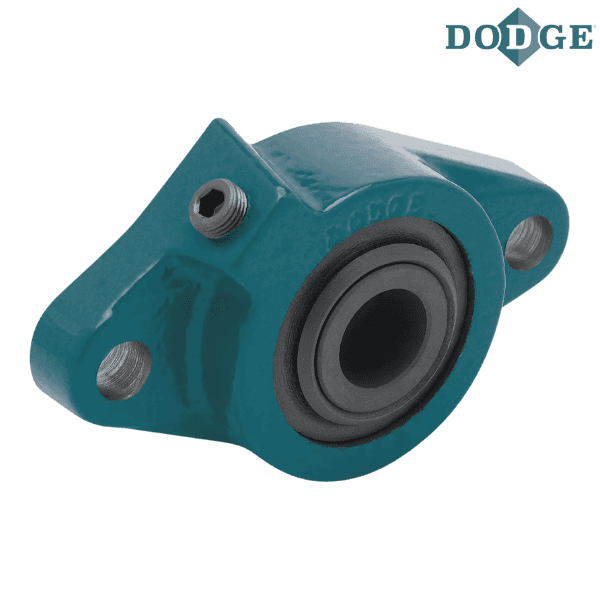

Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 207
Shaft Size (mm) - 35
Description - F2B-LT7-35M
Weight (kg) - 1.5

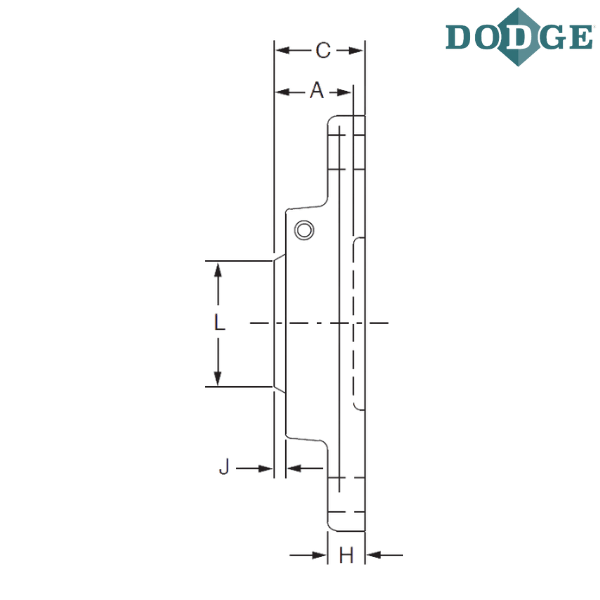

Length Through Bore (A) mm - 31

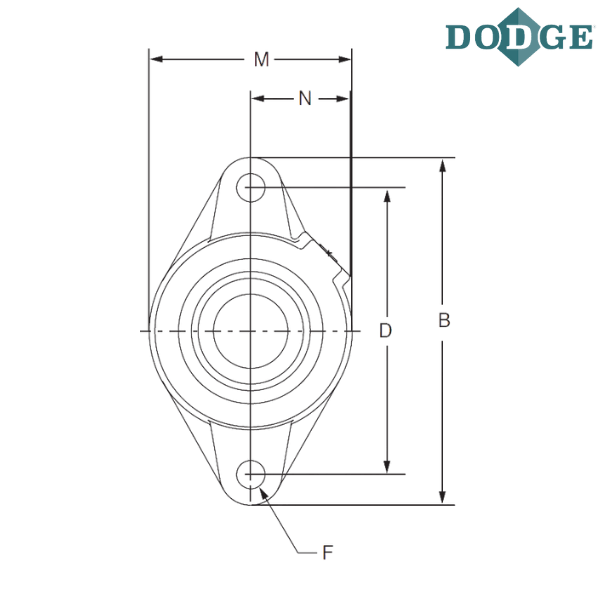

Overall Length (B) mm - 155.6
Thickness (C) mm - 34.9
Bolt Center to Center Length (D) mm - 130.2
F-Bolt Diameter (inch) - 0.5
H (mm) - 14.3
J (mm) - 4
L (mm) - 54
Overall Width (M) mm - 95.3
N (mm) - 46.8
Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
