Description
Brand - DODGE
Item Number - 034253 DODGE - P2B-LTB10-25M
Category - Sleeve Bearings - SOLIDLUBE (1000 Series)
Series - 205
Shaft Size (mm) - 25
Description - P2B-LTB10-25M
Weight (kg) - 0.59
Used on Frame - LD-10

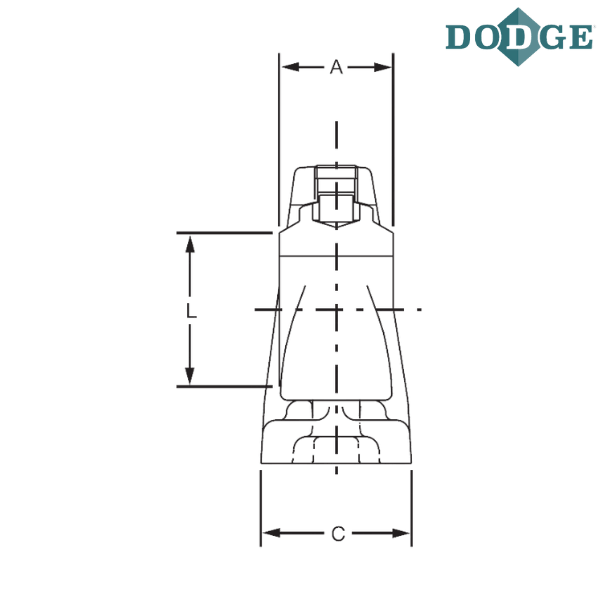

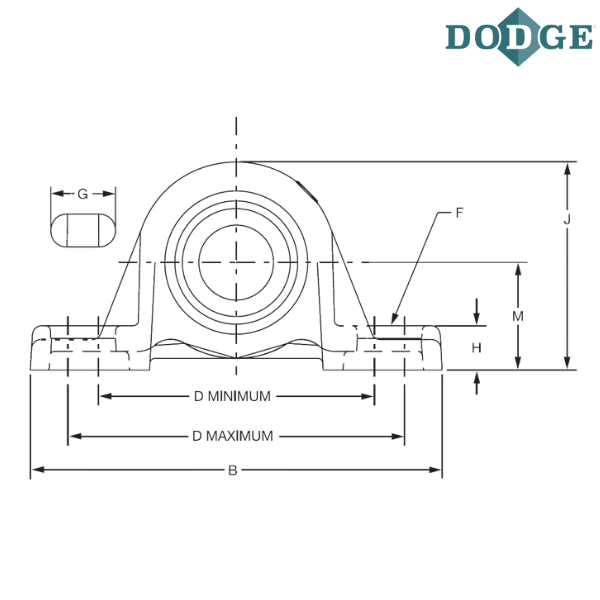

Length Through Bore (A) mm - 27
Overall Length (B) mm - 139.7
Width (C) mm - 35.7
Bolt to Bolt Minimum Distance (D min) mm - 93.7
Bolt to Bolt Maximum Distance (D max) mm - 114.3
F-Bolt Diameter (mm) - 10
G (mm) - 21.4
H (mm) - 11.9
Overall Height (J) mm - 67.5
L (mm) - 39.7
Base to Center Height (M) mm - 33.3
Notes :

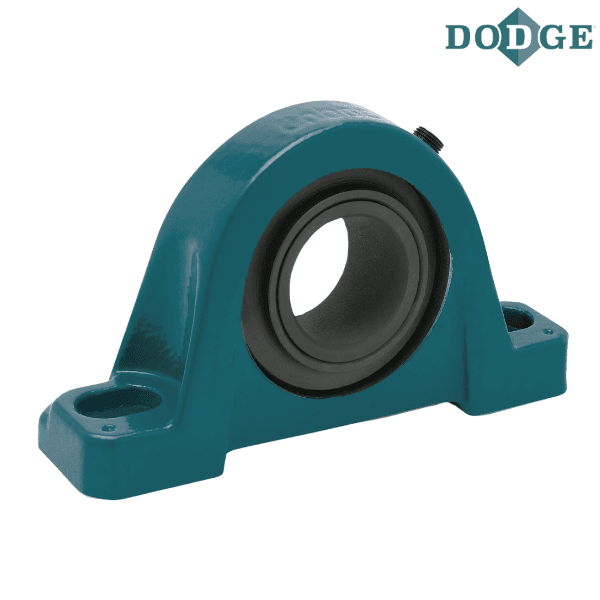

P2B - Pillow Block, 2 Bolt Base
LTB10 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT1000 Series
25M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
