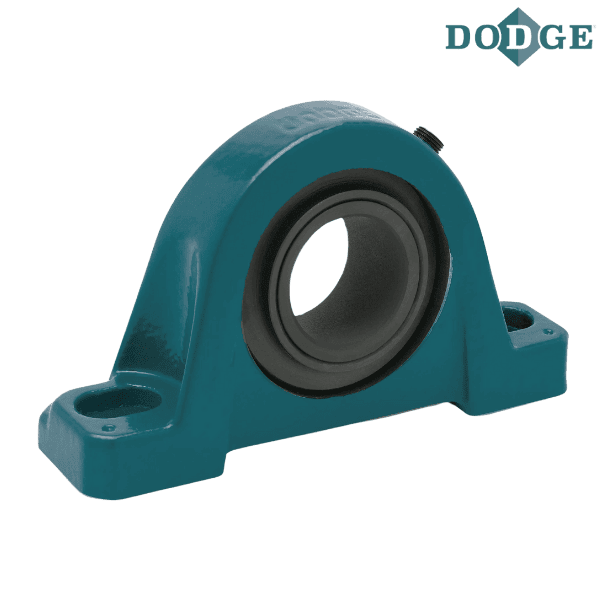

034251 DODGE - P2B-LTB7-60M

Brand - DODGE
Item Number - 034251 DODGE - P2B-LTB7-60M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 212
Shaft Size (mm) - 60
Description - P2B-LTB7-60M
Weight (kg) - 3.67
Used on Frame - LD-40

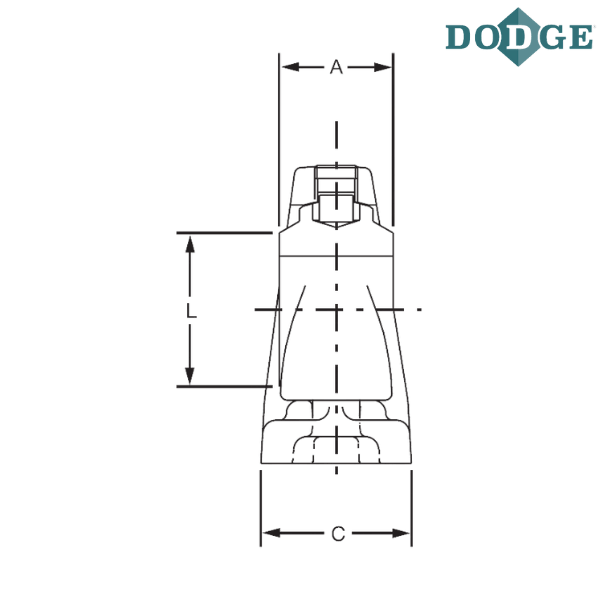

Length Through Bore (A) mm - 46

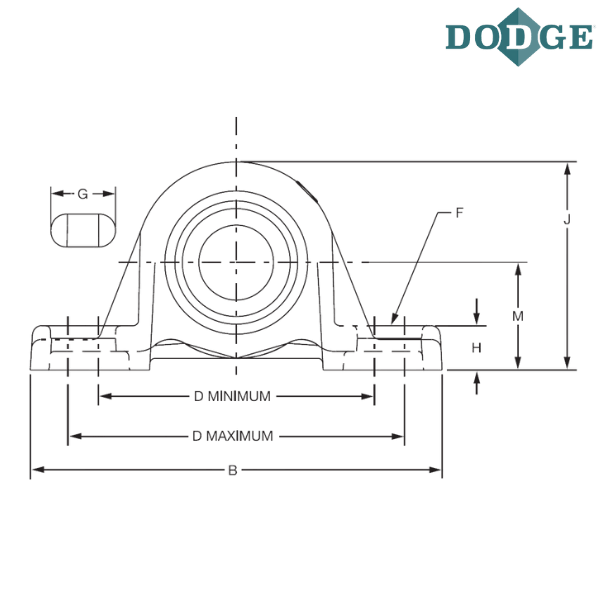

Overall Length (B) mm - 241.3
Width (C) mm - 60.3
Bolt to Bolt Minimum Distance (D min) mm - 174.6
Bolt to Bolt Maximum Distance (D max) mm - 201.6
F-Bolt Diameter (mm) - 16
G (mm) - 31
H (mm) - 20.6
Overall Height (J) mm - 135.7
L (mm) - 88.9
Base to Center Height (M) mm - 68.3

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
60M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

** Images are for representation purposes only
