Description

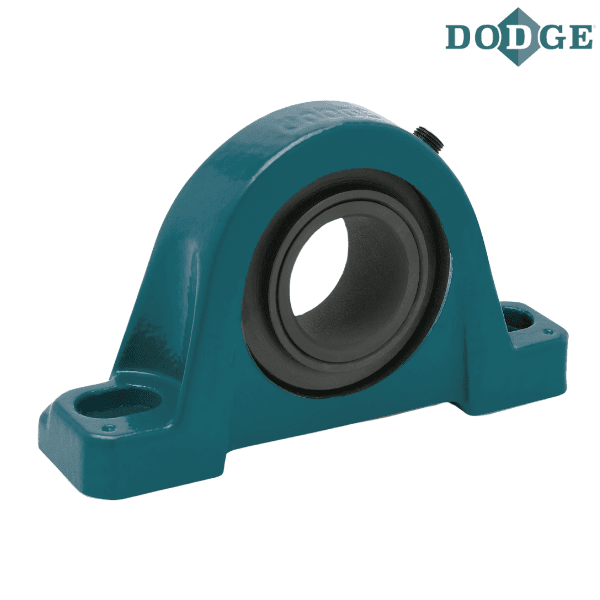

Brand - DODGE
Item Number - 034249 DODGE - P2B-LTB7-45M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 209
Shaft Size (mm) - 45
Description - P2B-LTB7-45M
Weight (kg) - 2.18
Used on Frame - LD-20

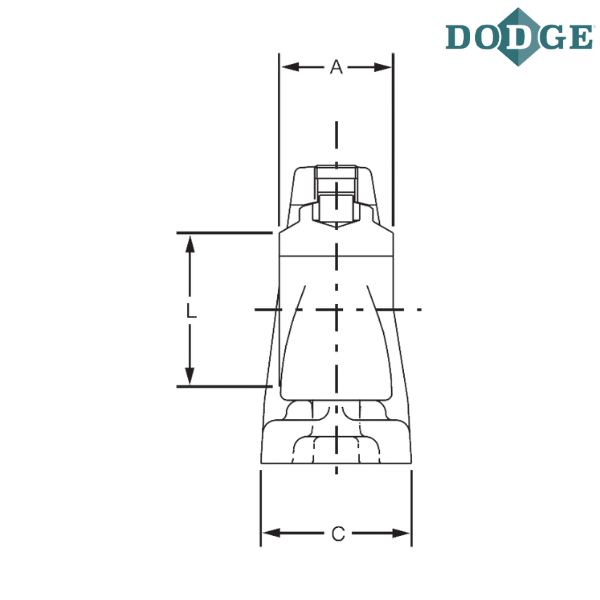

Length Through Bore (A) mm - 39.7

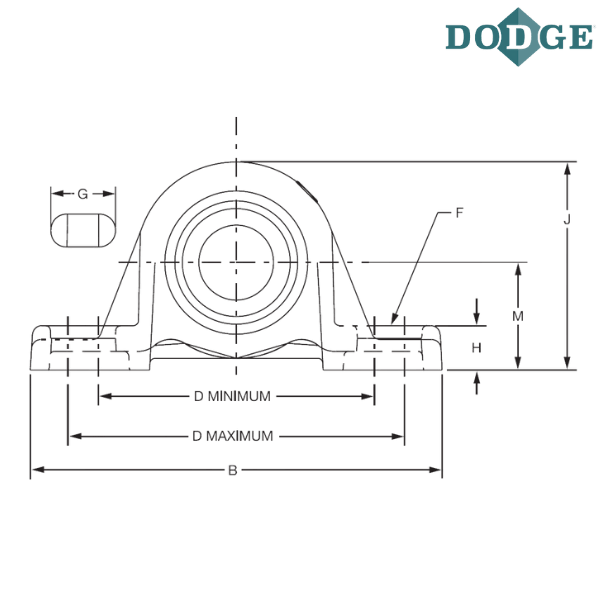

Overall Length (B) mm - 188.9
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter (mm) - 12
G (mm) - 23
H (mm) - 17.5
Overall Height (J) mm - 107.2
L (mm) - 65.1
Base to Center Height (M) mm - 52.4
Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
45M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
