Description
Brand - DODGE
Item Number - 034247 DODGE - P2B-LTB7-35M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 207
Shaft Size (mm) - 35
Description - P2B-LTB7-35M
Weight (kg) - 1.72
Used on Frame - LD-20

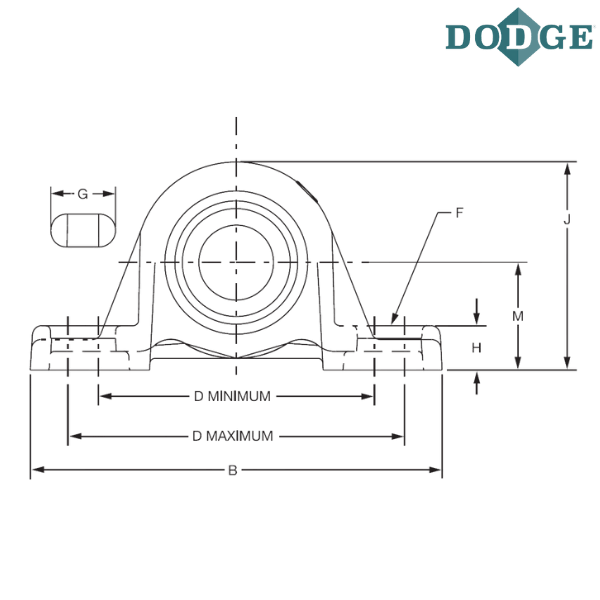

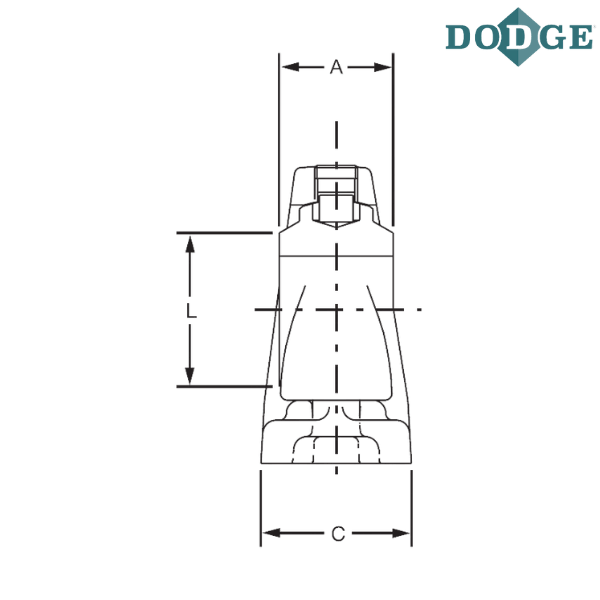

Length Through Bore (A) mm - 33.3
Overall Length (B) mm - 165.1
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 119.1
Bolt to Bolt Maximum Distance (D max) mm - 138.1
F-Bolt Diameter (mm) - 12
G (mm) - 23.8
H (mm) - 16.7
Overall Height (J) mm - 93.7
L (mm) - 54
Base to Center Height (M) mm - 46
Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

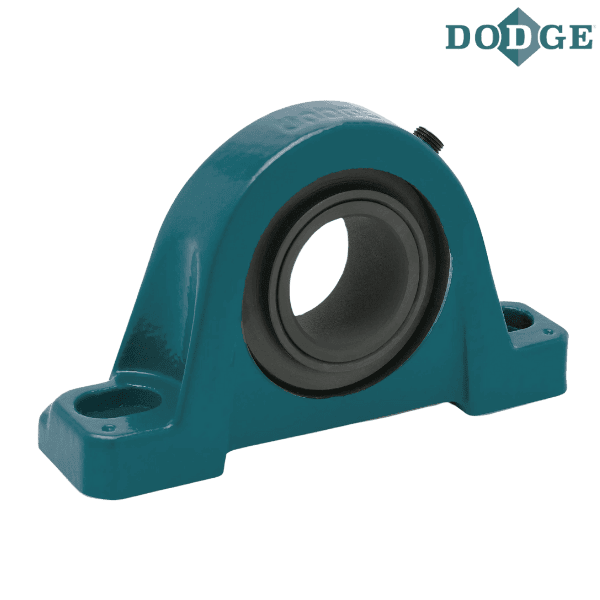

** Images are for representation purposes only
