Description
Brand - DODGE

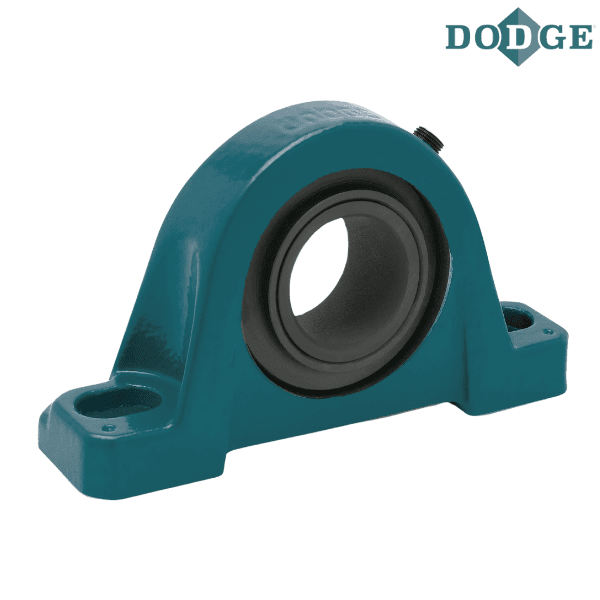

Item Number - 034244 DODGE - P2B-LTB7-20M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 204
Shaft Size (mm) - 20
Description - P2B-LTB7-20M
Weight (kg) - 0.73
Used on Frame - LD-10

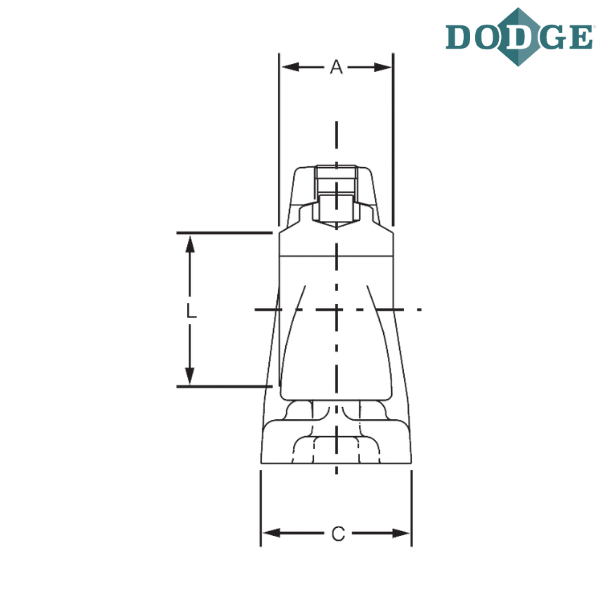

Length Through Bore (A) mm - 25.4

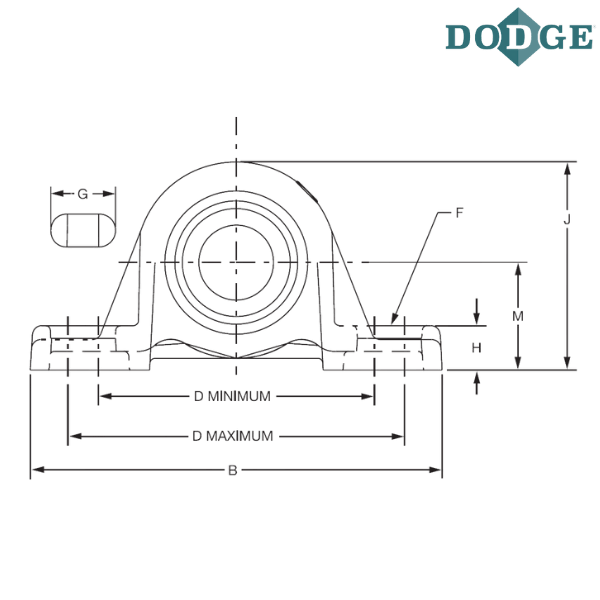

Overall Length (B) mm - 133.4
Width (C) mm - 34.1
Bolt to Bolt Minimum Distance (D min) mm - 85.7
Bolt to Bolt Maximum Distance (D max) mm - 106.4
F-Bolt Diameter (mm) - 10
G (mm) - 21.4
H (mm) - 11.9
Overall Height (J) mm - 63.5
L (mm) - 34.9
Base to Center Height (M) mm - 31.8
Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
20M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
