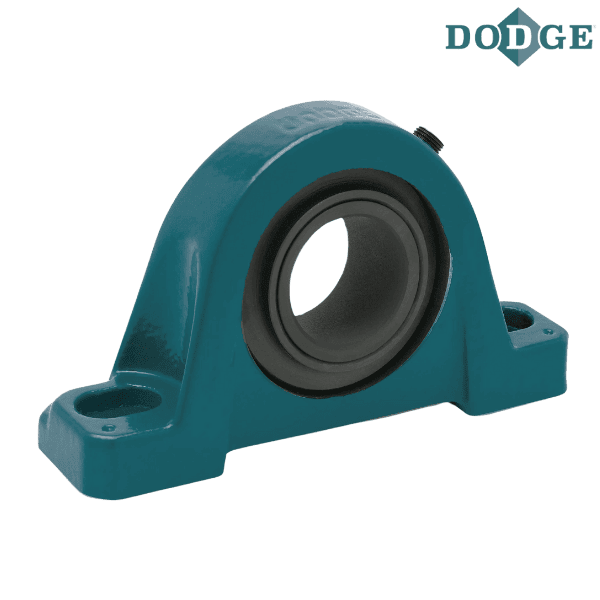

034242 DODGE - P2B-LT10-70M

Brand - DODGE
Item Number - 034242 DODGE - P2B-LT10-70M
Category - Sleeve Bearings - SOLIDLUBE (1000 Series)
Series - 215
Shaft Size (mm) - 70
Description - P2B-LT10-70M
Weight (kg) - 9.98
Used on Frame - LD-45

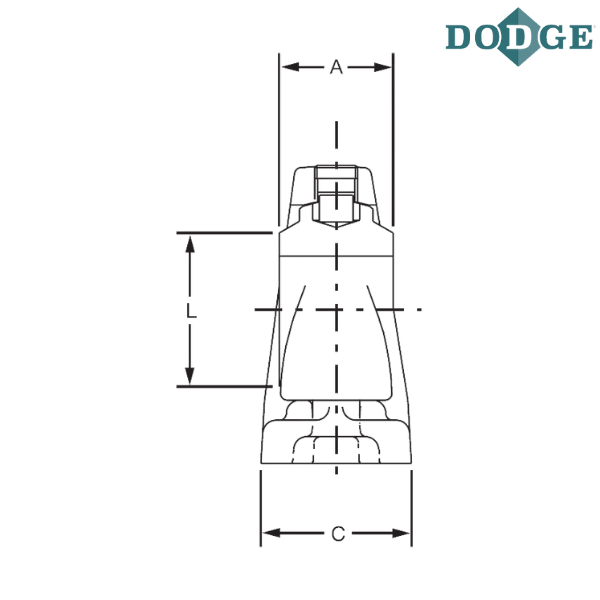

Length Through Bore (A) mm - 69.1

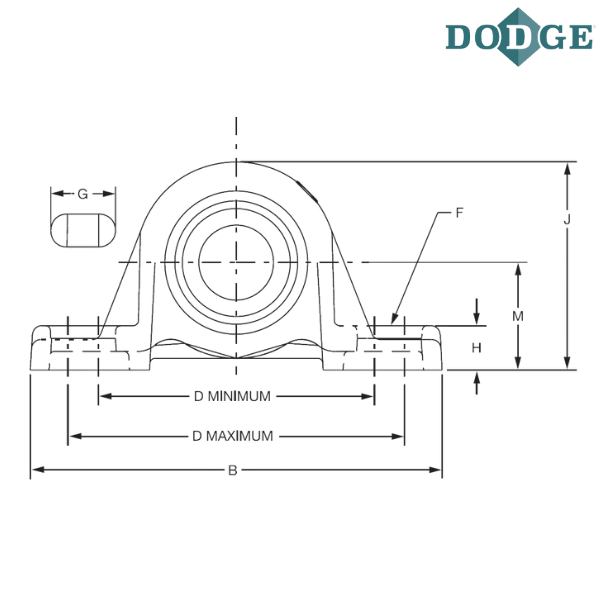

Overall Length (B) mm - 298.5
Width (C) mm - 73
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter (mm) - 22
G (mm) - 36.5
H (mm) - 25.4
Overall Height (J) mm - 171.5
L (mm) - 100
Base to Center Height (M) mm - 88.9

Notes :
P2B - Pillow Block, 2 Bolt Base
LT10 - SOLIDLUBE LT 1000 Series
70M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

** Images are for representation purposes only
