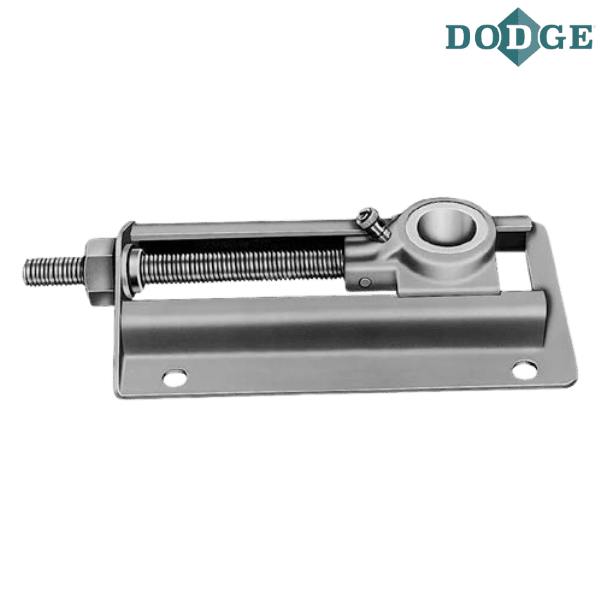

034024 DODGE - BO-TU-015X4


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 034024 DODGE - BO-TU-015X4
Category - Take-Up Frames - BRONZOIL
Description - BO-TU-015X4
Shaft Size X Travel - 0.9375 x 4
Also Known As - BOTU-015X4
Weight (lbs) - 2

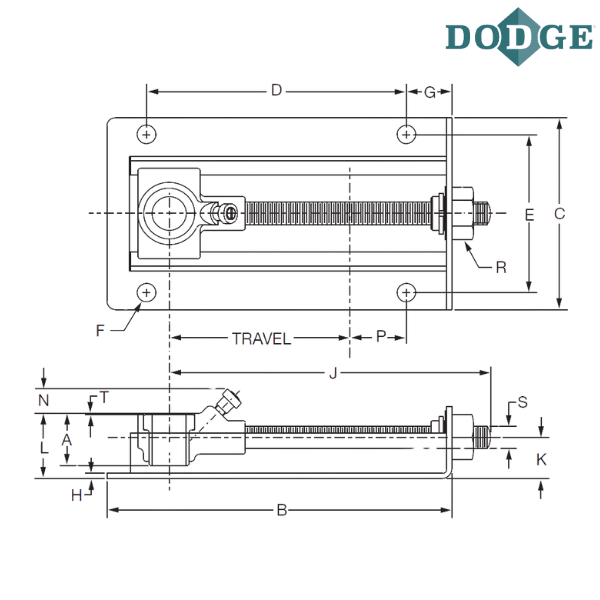

A (inch) - 1.5625
B (inch) - 7.625
C (inch) - 4.25
D (inch) - 5.75
E (inch) - 3.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 1
H (inch) - 0.109375
J (inch) - 14.125
K (inch) - 0.90625
L (inch) - 1.625
N (inch) - 0.3125
P (inch) - 1.25
Hex Size (R) inch - 1
S (inch) - 0.5
T (inch) - 0.0625

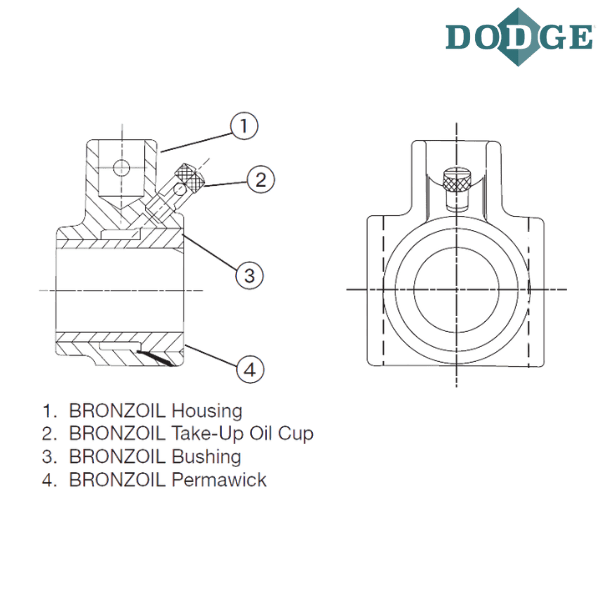

Description of BRONZOIL Take-Up Bearing Assembly :
TUBO Assembly Number - 034034
BRONZOIL Housing - 034002
BRONZOIL Take-Up Oil Cup - 405046
BRONZOIL Bushing - 034017
BRONZOIL Permawick - 444010

Notes :
BOTU - BRONZOIL Take-Up
15 - Frame Size Designation
4 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
