Description
Brand - DODGE
Item Number - 033940 DODGE - SCHB-LT7-208

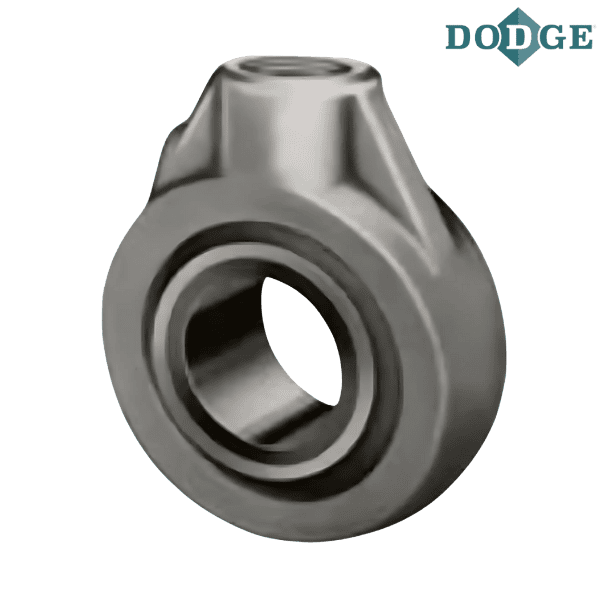

Category - Sleeve Bearings - SOLIDLUBE LT Screw Conveyor Hanger Bearing (LT700 Series)
Series - 212
Shaft Size (inch) - 2.5
Description - SCHB-LT7-208
Weight (lbs) - 7

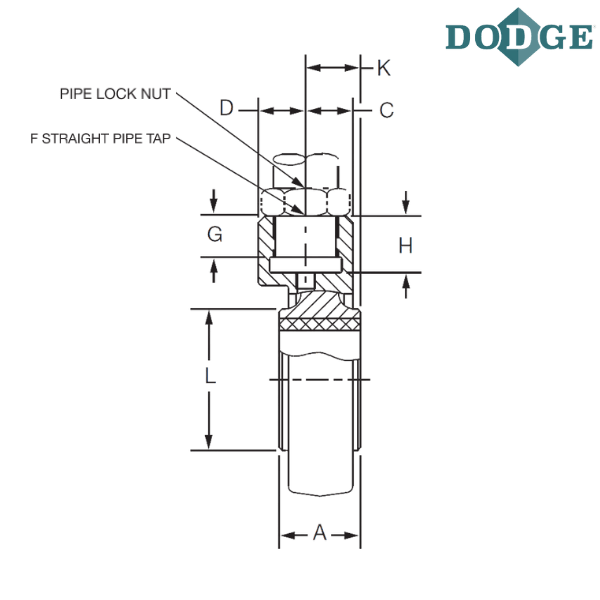

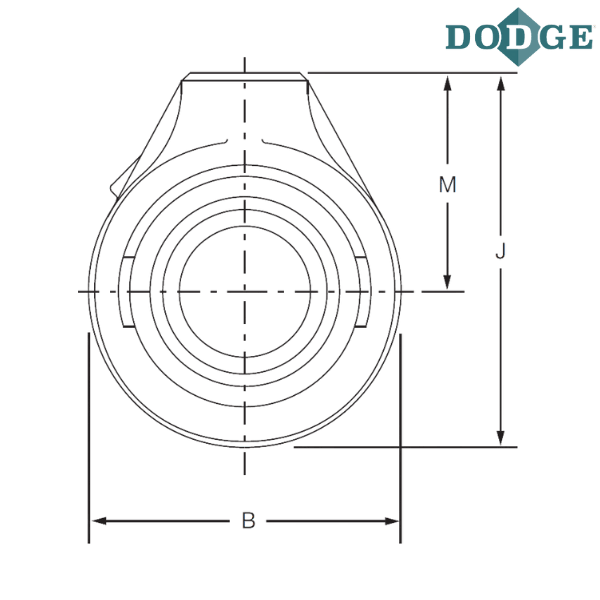

A (inch) - 1.8125
Overall Width (B) inch - 5.5
C (inch) - 1.15625
D (inch) - 1.15625
F (inch) - 1.25
G (inch) - 1.125
H (inch) - 1.4375
Overall Length (J) inch - 6.75
K (inch) - 1.25
L (inch) - 3.5
M (inch) - 4
Notes :
SCHB - Screw Conveyor Hanger Bearing
LT7 - SOLIDLUBE LT700 Series
208 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
