033926 DODGE - WSTU-LT10-208

Brand - DODGE
Item Number - 033926 DODGE - WSTU-LT10-208

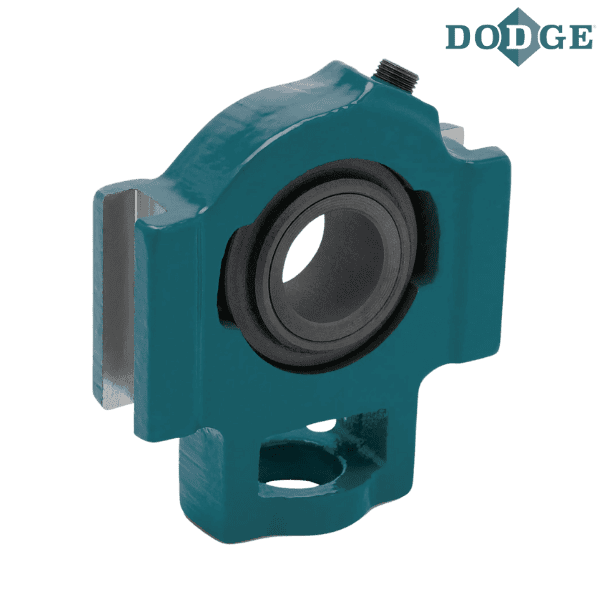

Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 212
Shaft Size (inch) - 2.5
Description - WSTU-LT10-208
Weight (lbs) - 9.8
Used on Frame - WS-502

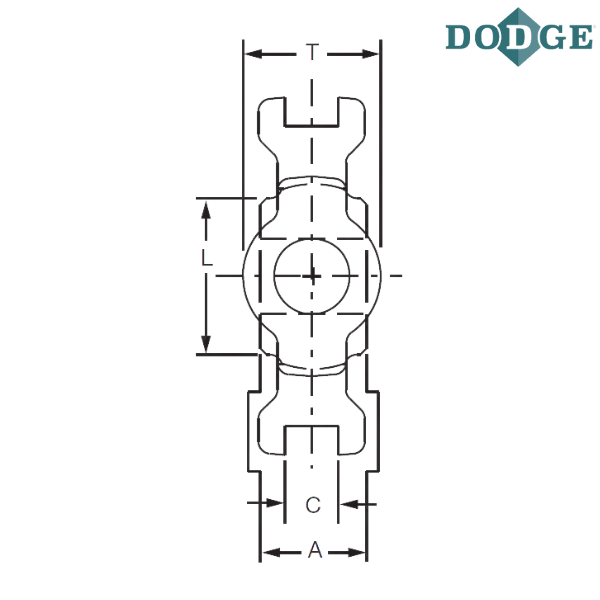

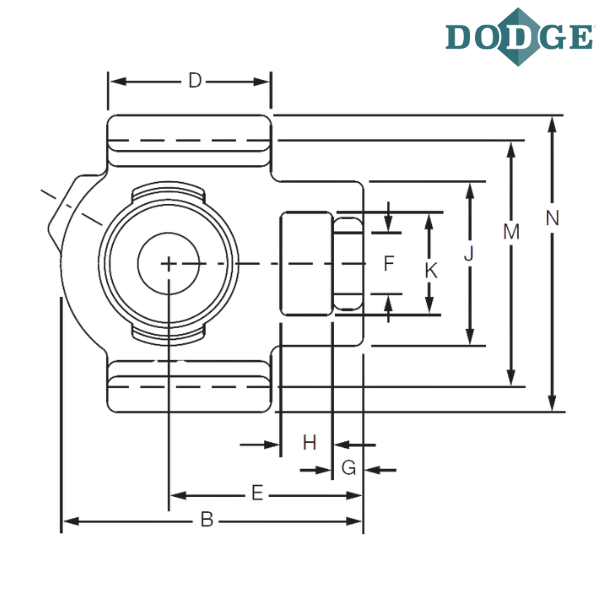

Length Through Bore (A) inch - 1.8125
Overall Length (B) inch - 7.5
C (inch) - 1.0625
D (inch) - 4
E (inch) - 4.6875
F-Bolt Diameter (inch) - 1.375
G (inch) - 0.75
H (inch) - 1.25
J (inch) - 4
K (inch) - 2.5
L (inch) - 3.5
M (inch) - 5.125
Overall Width (N) inch - 5.875
Thickness (T) inch - 2.5

Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
208 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
