033923 DODGE - WSTU-LT10-200

Brand - DODGE
Item Number - 033923 DODGE - WSTU-LT10-200
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 210
Shaft Size (inch) - 2
Description - WSTU-LT10-200
Weight (lbs) - 6.5
Used on Frame - WS-400

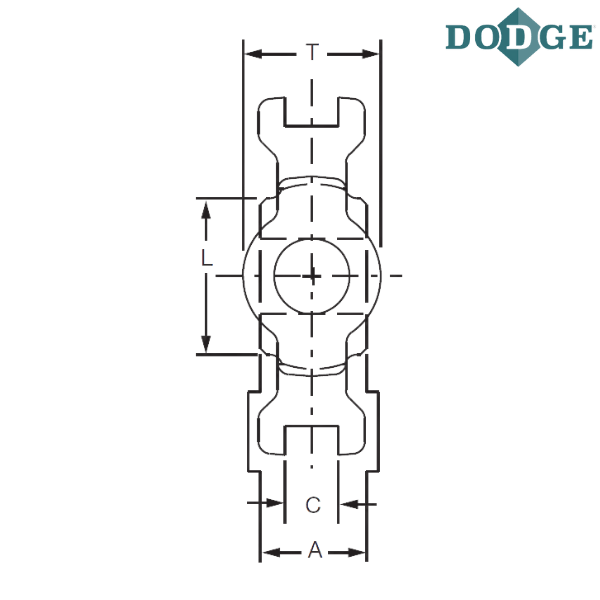

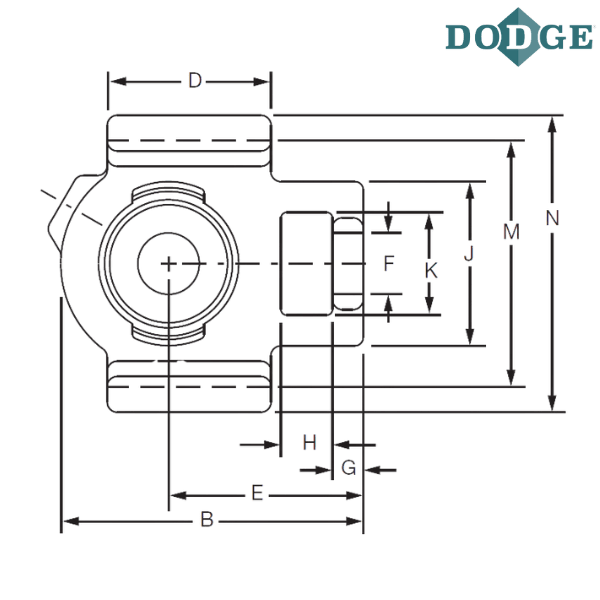

Length Through Bore (A) inch - 1.625
Overall Length (B) inch - 5.8125
C (inch) - 0.6875
D (inch) - 3.375
E (inch) - 3.5625
F-Bolt Diameter (inch) - 1.125
G (inch) - 0.625
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.9375
L (inch) - 2.8125
M (inch) - 4
Overall Width (N) inch - 4.75
Thickness (T) inch - 1.9375

Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
200 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

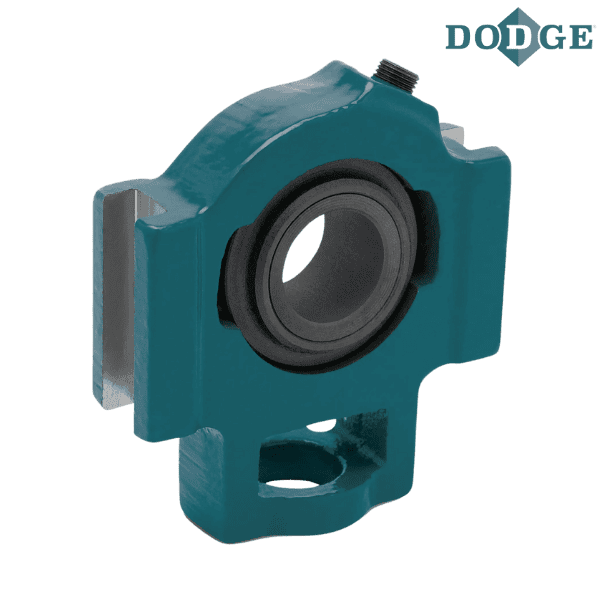

** Images are for representation purposes only
