033920 DODGE - WSTU-LT10-111

Brand - DODGE
Item Number - 033920 DODGE - WSTU-LT10-111
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 209
Shaft Size (inch) - 1.6875
Description - WSTU-LT10-111
Weight (lbs) - 6.1
Used on Frame - WS-400

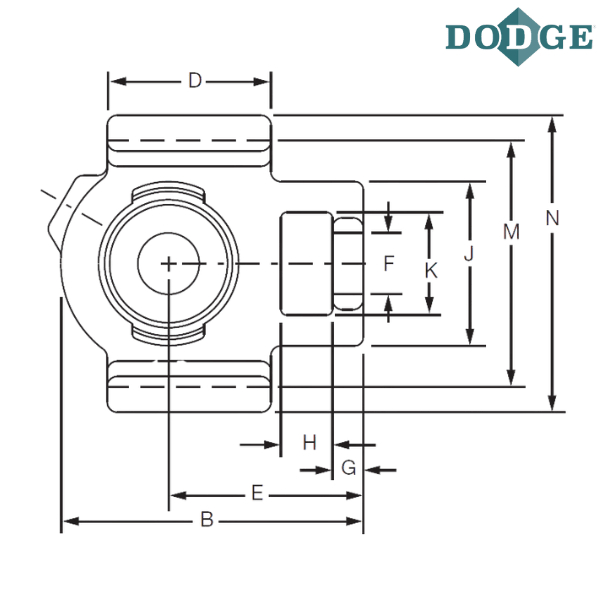

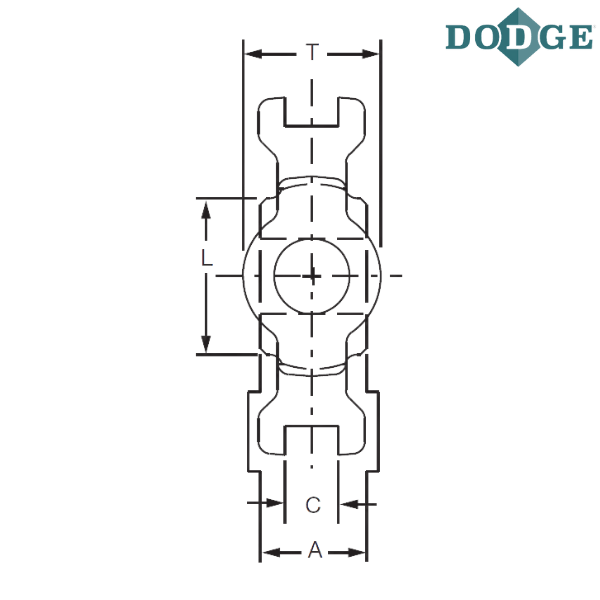

Length Through Bore (A) inch - 1.5625
Overall Length (B) inch - 5.625
C (inch) - 0.6875
D (inch) - 3.25
E (inch) - 3.4375
F-Bolt Diameter (inch) - 1.125
G (inch) - 0.625
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.9375
L (inch) - 2.5625
M (inch) - 4
Overall Width (N) inch - 4.75
Thickness (T) inch - 1.9375

Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
111 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

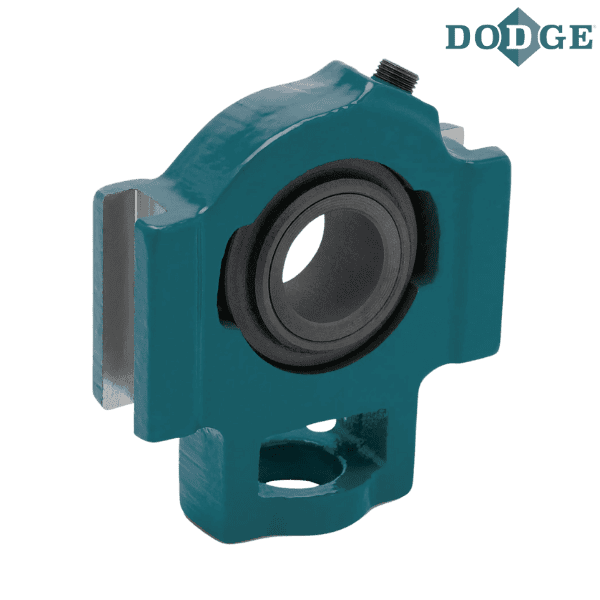

** Images are for representation purposes only
