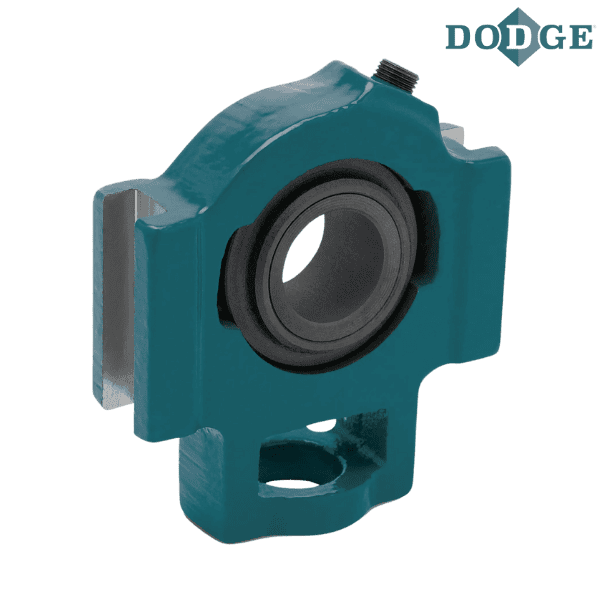

033917 DODGE - WSTU-LT10-106

Brand - DODGE
Item Number - 033917 DODGE - WSTU-LT10-106
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 207
Shaft Size (inch) - 1.375
Description - WSTU-LT10-106
Weight (lbs) - 3.9
Used on Frame - WS-308

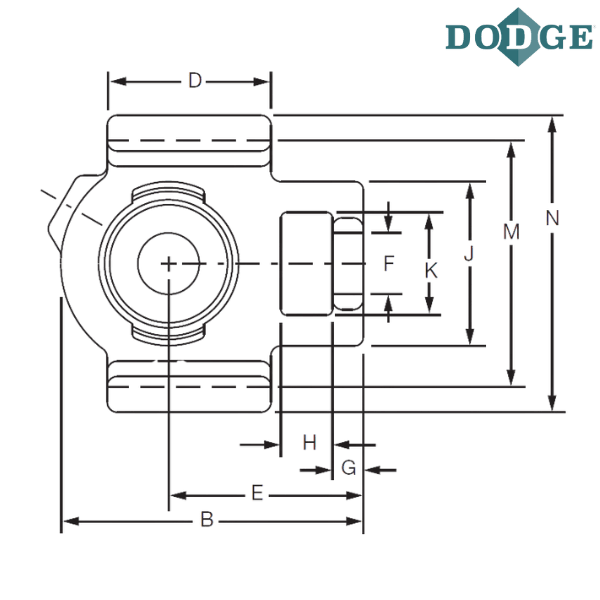

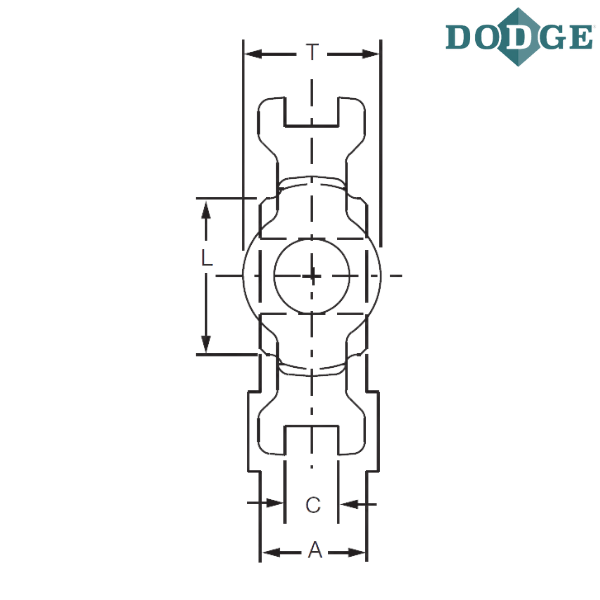

Length Through Bore (A) inch - 1.3125
Overall Length (B) inch - 4.875
C (inch) - 0.53125
D (inch) - 2.5
E (inch) - 3.0625
F-Bolt Diameter (inch) - 0.875
G (inch) - 0.5
H (inch) - 0.625
J (inch) - 2.5
K (inch) - 1.4375
L (inch) - 2.125
M (inch) - 3.5
Overall Width (N) inch - 4.125
Thickness (T) inch - 1.625

Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
106 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
