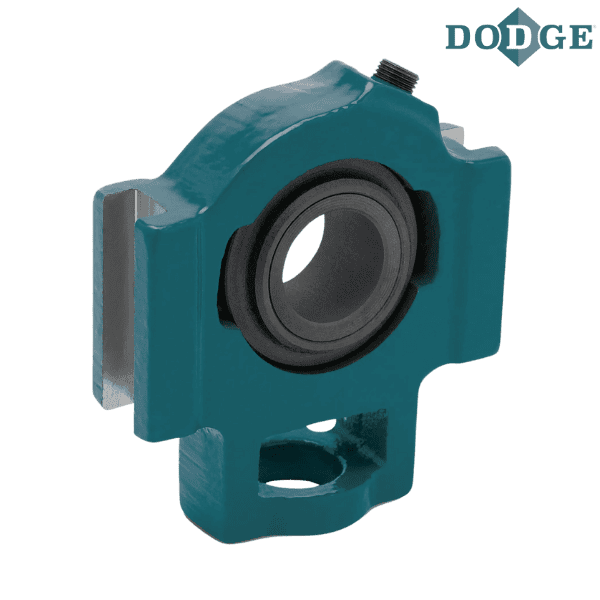

033912 DODGE - WSTU-LT10-015

Brand - DODGE
Item Number - 033912 DODGE - WSTU-LT10-015
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 205
Shaft Size (inch) - 0.9375
Description - WSTU-LT10-015
Weight (lbs) - 2.5
Used on Frame - WS-300

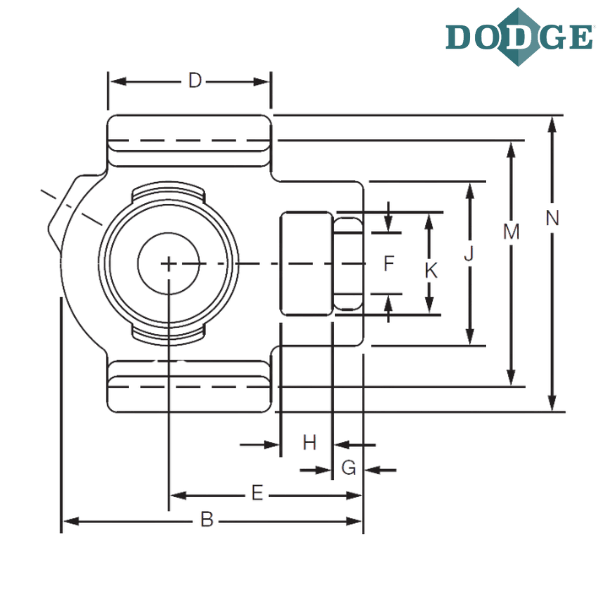

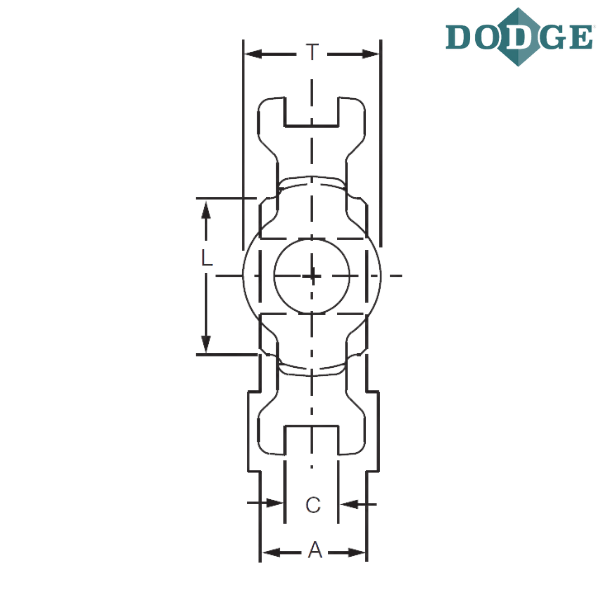

Length Through Bore (A) inch - 1.0625
Overall Length (B) inch - 3.8125
C (inch) - 0.53125
D (inch) - 2
E (inch) - 2.4375
F-Bolt Diameter (inch) - 0.8125
G (inch) - 0.375
H (inch) - 0.625
J (inch) - 2
K (inch) - 1.3125
L (inch) - 1.5625
M (inch) - 3
Overall Width (N) inch - 3.625
Thickness (T) inch - 1.375

Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
015 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
