033875 DODGE - WSTU-LT7-103

Brand - DODGE
Item Number - 033875 DODGE - WSTU-LT7-103
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT700)
Series - 206
Shaft Size (inch) - 1.1875
Description - WSTU-LT7-103
Weight (lbs) - 3.1
Used on Frame - WS-308

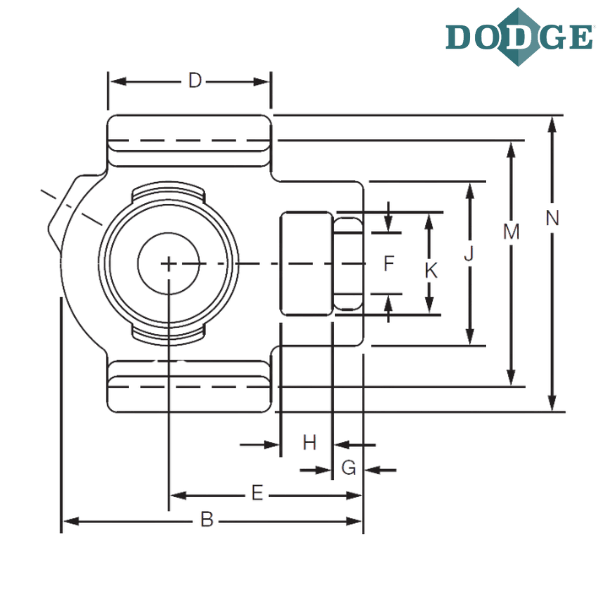

Length Through Bore (A) inch - 1.1875
Overall Length (B) inch - 4.375
C (inch) - 0.53125
D (inch) - 2.25
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.875
G (inch) - 0.375
H (inch) - 0.625
J (inch) - 2.1875
K (inch) - 1.4375
L (inch) - 1.8125
M (inch) - 3.5
Overall Width (N) inch - 4.125
Thickness (T) inch - 1.625

Notes :
WSTU - Wide Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
103 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

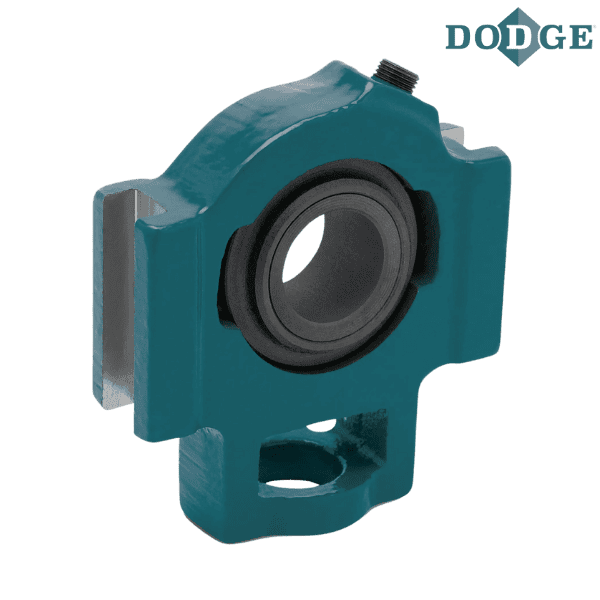

** Images are for representation purposes only
