033870 DODGE - WSTU-LT7-012

Brand - DODGE
Item Number - 033870 DODGE - WSTU-LT7-012
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT700)
Series - 204
Shaft Size (inch) - 0.75
Description - WSTU-LT7-012
Weight (lbs) - 2.4
Used on Frame - WS-300

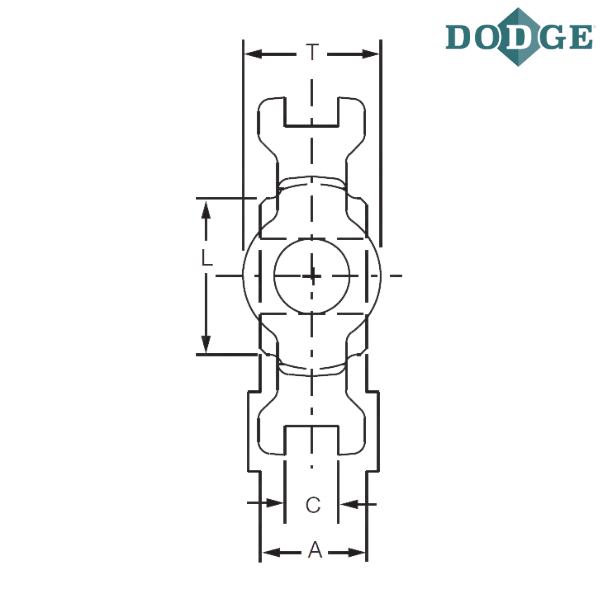

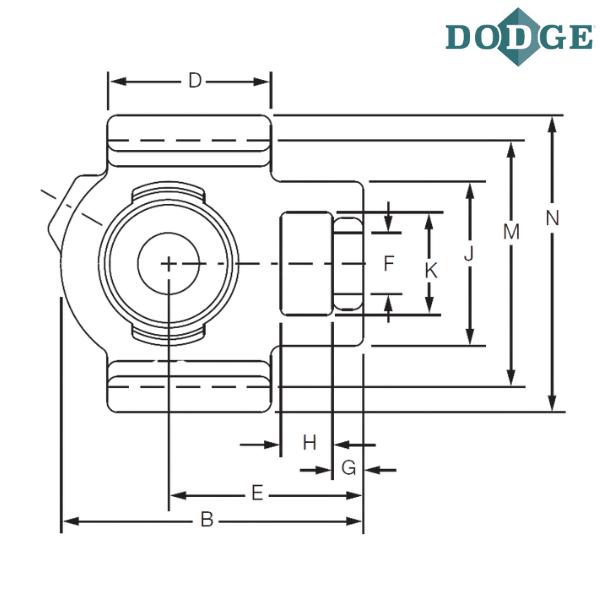

Length Through Bore (A) inch - 1
Overall Length (B) inch - 3.6875
C (inch) - 0.53125
D (inch) - 2
E (inch) - 2.375
F-Bolt Diameter (inch) - 0.75
G (inch) - 0.375
H (inch) - 0.625
J (inch) - 2
K (inch) - 1.25
L (inch) - 1.375
M (inch) - 3
Overall Width (N) inch - 3.625
Thickness (T) inch - 1.375

Notes :
WSTU - Wide Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
012 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

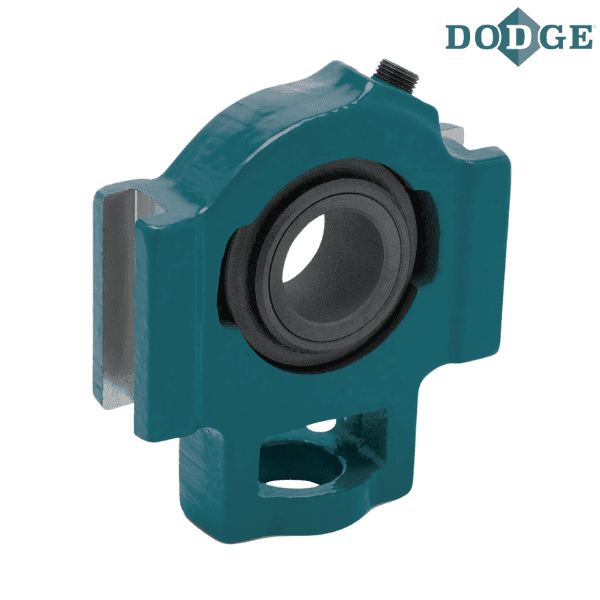

** Images are for representation purposes only
