033854 DODGE - NSTU-LT10-203

Brand - DODGE
Item Number - 033854 DODGE - NSTU-LT10-203
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 211
Shaft Size (inch) - 2.1875
Description - NSTU-LT10-203
Weight (lbs) - 6.7
Used On Frame - NS-407

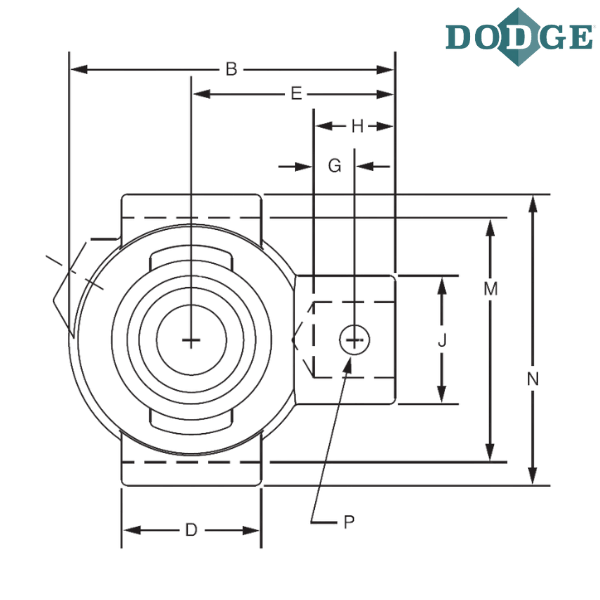

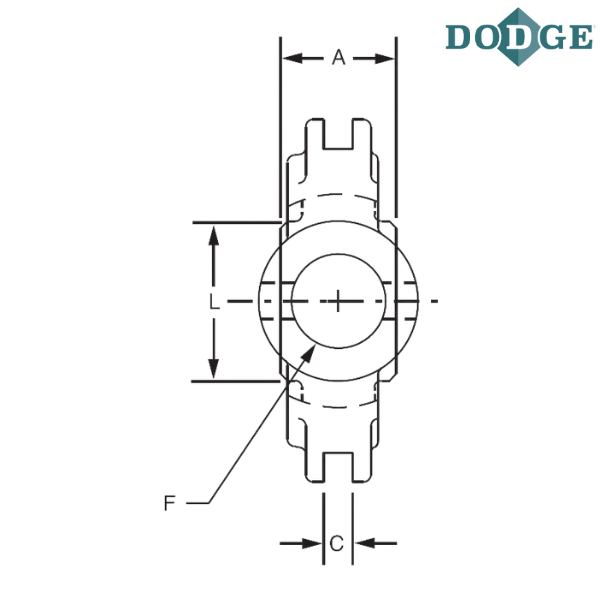

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 6.125
C (inch) - 0.3125
D (inch) - 3.5
E (inch) - 3.625
F (Screw Diameter) inch - 1
G (inch) - 0.59375
H (inch) - 1.28125
J (inch) - 1.625
L (inch) - 3.5
M (inch) - 4.9375
Overall Width (N) inch - 5.75
Pin Diameter (P) inch - 0.4375

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

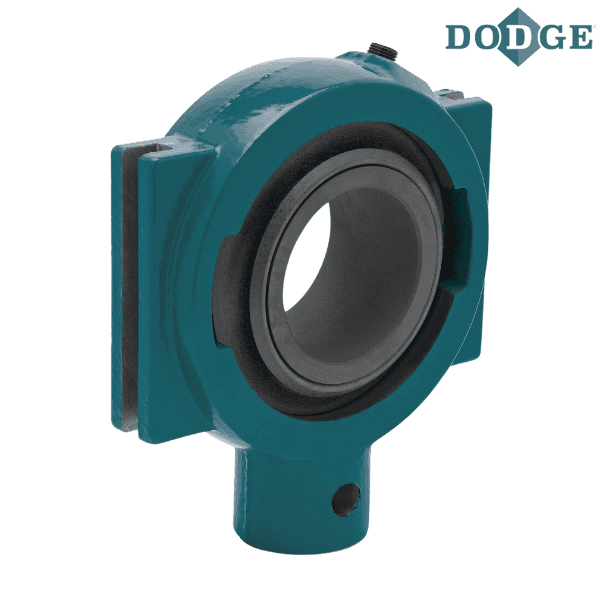

** Images are for representation purposes only
