033822 DODGE - NSTU-LT7-115

Brand - DODGE
Item Number - 033822 DODGE - NSTU-LT7-115
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT700)
Series - 210
Shaft Size (inch) - 1.9375
Description - NSTU-LT7-115
Weight (lbs) - 5.5
Used On Frame - NS-400

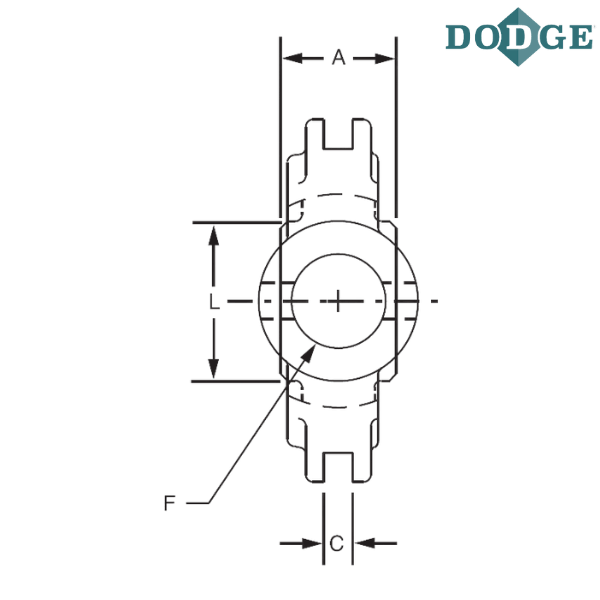

Length Through Bore (A) inch - 1.625
Overall Length (B) inch - 5.5
C (inch) - 0.3125
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.5
H (inch) - 1.09375
J (inch) - 1.625
L (inch) - 2.8125
M (inch) - 4
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.375

Notes :
NSTU - Narrow Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
