033814 DODGE - NSTU-LT7-102

Brand - DODGE
Item Number - 033814 DODGE - NSTU-LT7-102
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT700)
Series - 206
Shaft Size (inch) - 1.125
Description - NSTU-LT7-102
Weight (lbs) - 2.8
Used On Frame - NS-308

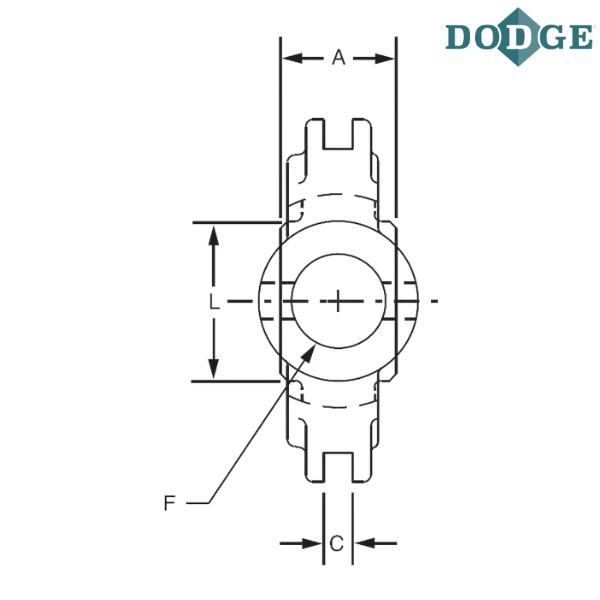

Length Through Bore (A) inch - 1.1875

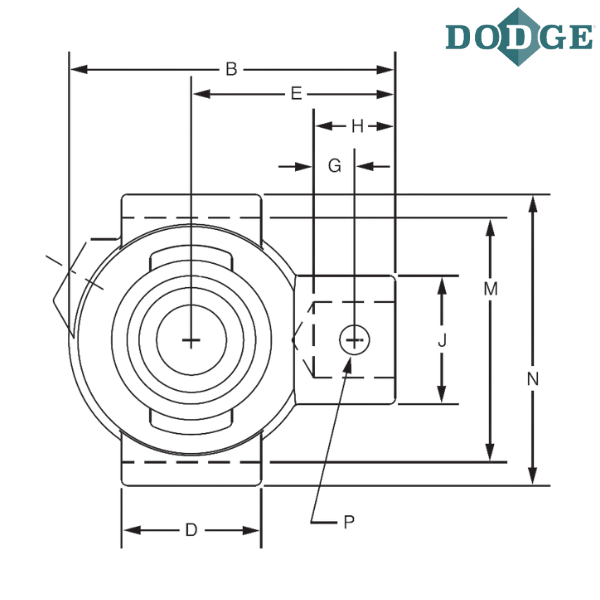

Overall Length (B) inch - 4.3125
C (inch) - 0.25
D (inch) - 2.5
E (inch) - 2.6875
F (Screw Diameter) inch - 0.75
G (inch) - 0.4375
H (inch) - 0.9375
J (inch) - 1.375
L (inch) - 1.8125
M (inch) - 3.5
Overall Width (N) inch - 4.125
Pin Diameter (P) inch - 0.3125

Notes :
NSTU - Narrow Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
102 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
