Description
Brand - DODGE
Item Number - 033755 DODGE - TP-GLT10-215
Category - Sleeve Bearings - Type GLT SOLIDLUBE Take-Up Bearings (1000 Series)
Shaft Size (inch) - 2.9375
Description - TP-GLT10-215
Weight (lbs) - 17
Frame Size - TP40

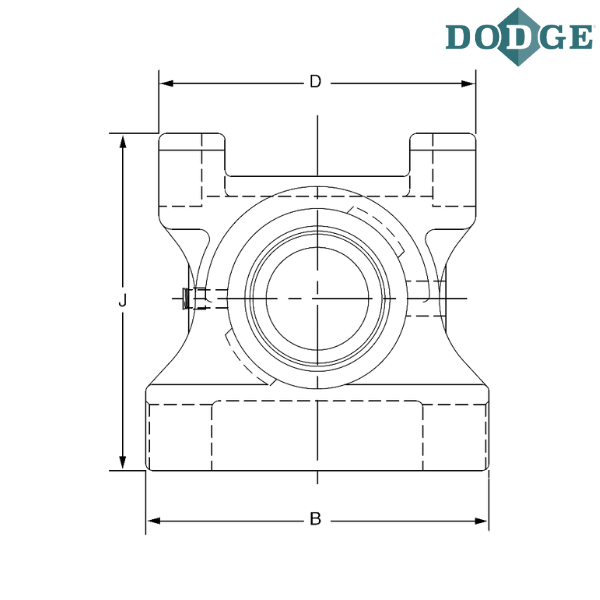

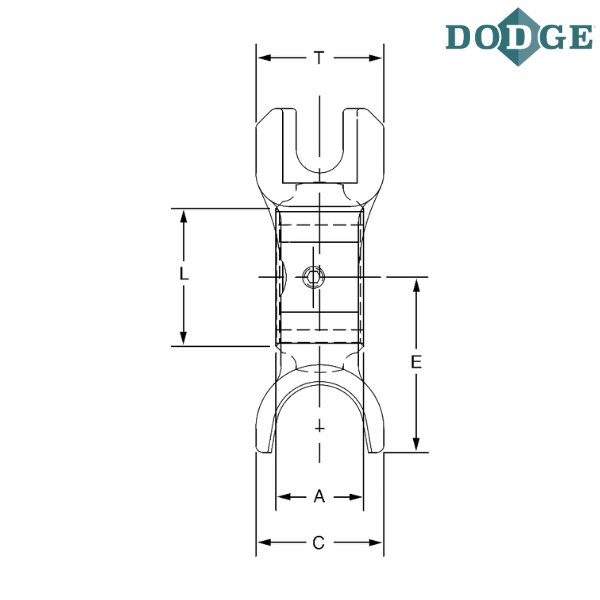

Length Through Bore (A) inch - 2.71875
Overall Length (B) inch - 8.5
C (inch) - 2.5
D (inch) - 8
E (inch) - 4
J (inch) - 8.3125
L (inch) - 3.9375
T (inch) - 2.75

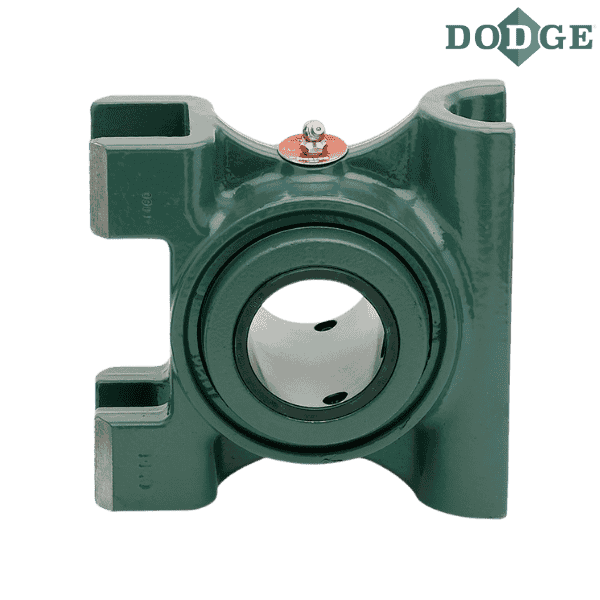

** Images are for representation purposes only
