Description
Brand - DODGE
Item Number - 033754 DODGE - TP-GLT10-208
Category - Sleeve Bearings - Type GLT SOLIDLUBE Take-Up Bearings (1000 Series)
Shaft Size (inch) - 2.5
Description - TP-GLT10-208
Weight (lbs) - 14.1
Frame Size - TP30

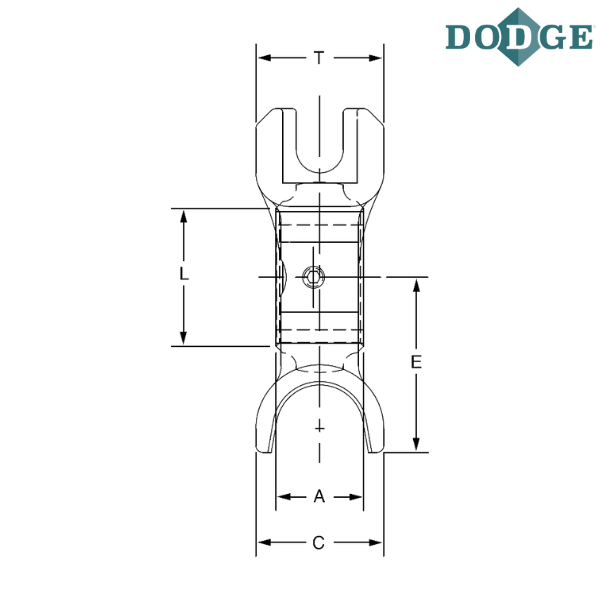

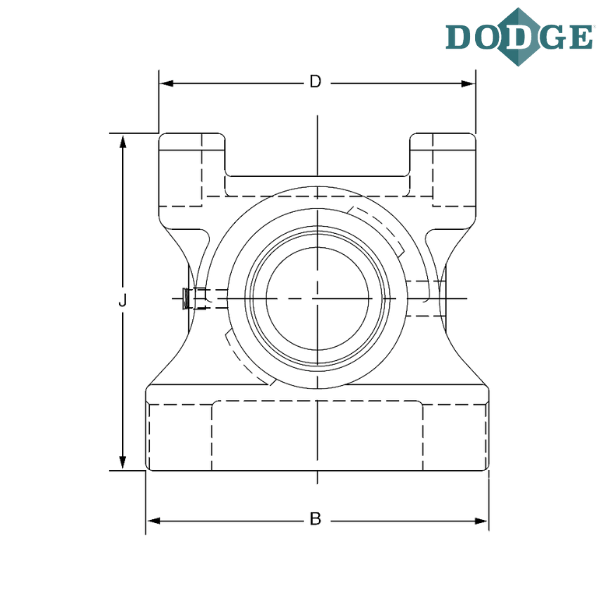

Length Through Bore (A) inch - 1.8125
Overall Length (B) inch - 7.5
C (inch) - 2.75
D (inch) - 7
E (inch) - 3.5
J (inch) - 7.4375
L (inch) - 3.5
T (inch) - 2.75

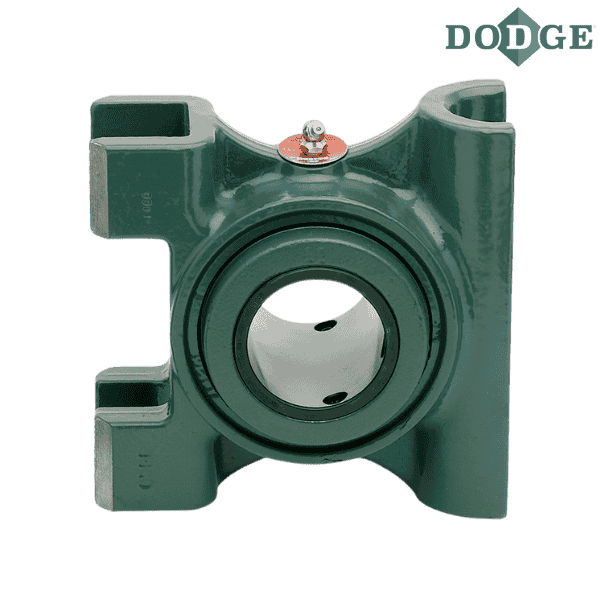

** Images are for representation purposes only
