033694 DODGE - P2B-LM8-104

Brand - DODGE
Item Number - 033694 DODGE - P2B-LM8-104
Category - Sleeve Bearings - SOLIDLUBE LM800 Pillow Blocks
Shaft Size (inch) - 1.25
Description - P2B-LM8-104
Weight (lbs) - 0.7

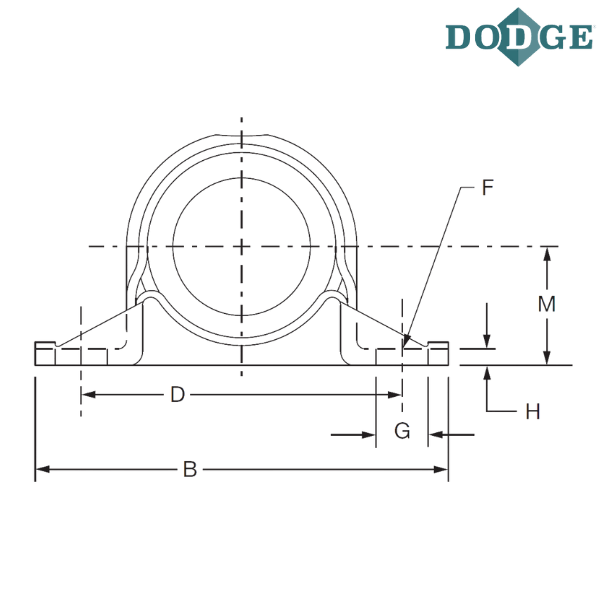

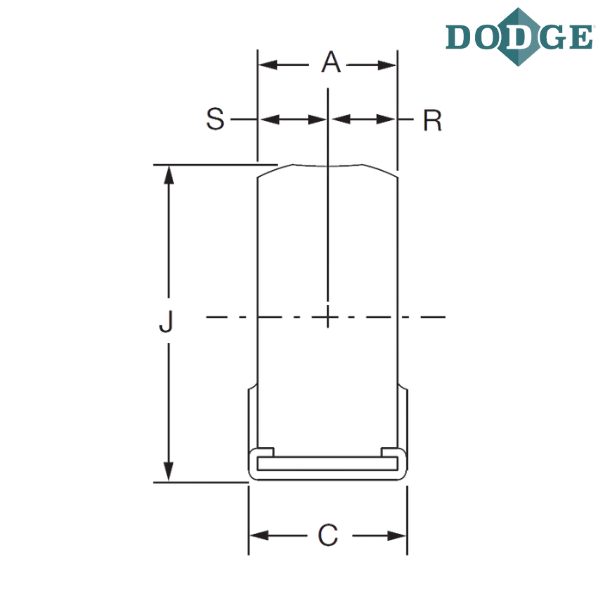

A (inch) - 1.125
Overall Length (B) inch - 4.5
C (inch) - 1.34375
Bolt Center to Center Length (D) inch - 3.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.5625
H (inch) - 0.15625
J (inch) - 2.5625
Base to Center Height (M) inch - 1.3125
R (inch) - 0.5625
S (inch) - 0.5625

Notes :
P2B - Pillow Block, 2 Bolt Base
LM8 - SOLIDLUBE LM800 Series
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
