Description
Brand - DODGE
Item Number - 033692 DODGE - P2B-LM8-012
Category - Sleeve Bearings - SOLIDLUBE LM800 Pillow Blocks
Shaft Size (inch) - 0.75
Description - P2B-LM8-012
Weight (lbs) - 0.7

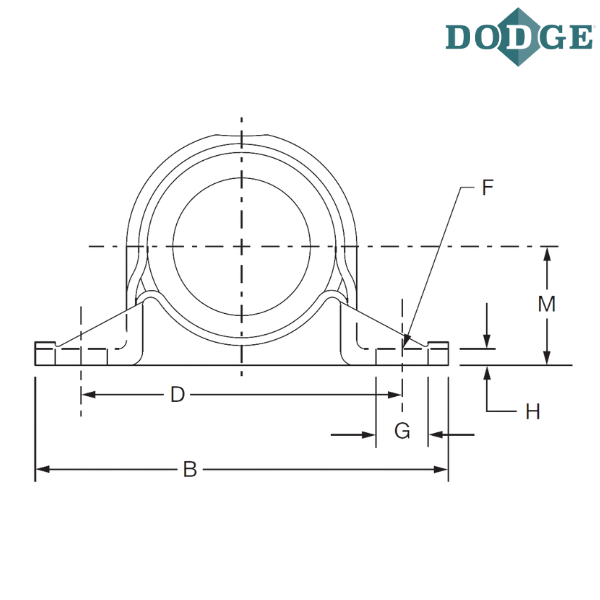

A (inch) - 1
Overall Length (B) inch - 4
C (inch) - 1.21875
Bolt Center to Center Length (D) inch - 3
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.5625
H (inch) - 0.15625
J (inch) - 2.0625
Base to Center Height (M) inch - 1.0625
R (inch) - 0.5
S (inch) - 0.5
Notes :
P2B - Pillow Block, 2 Bolt Base
LM8 - SOLIDLUBE LM800 Series
012 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
