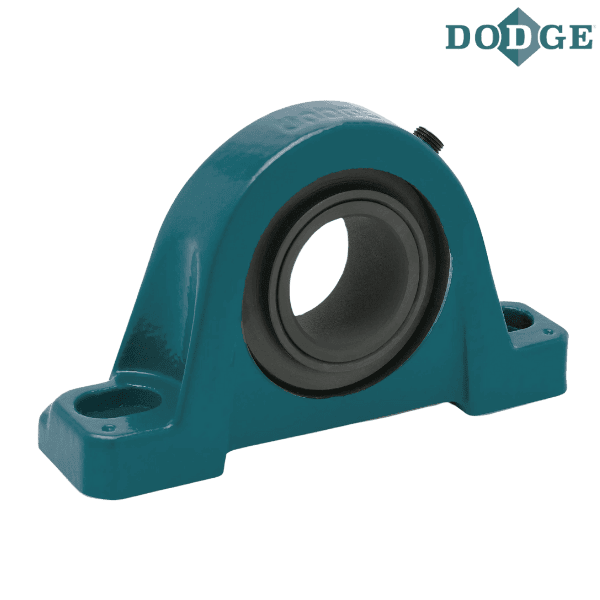

033686 DODGE - P2B-LT7-207

Brand - DODGE
Item Number - 033686 DODGE - P2B-LT7-207
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 212
Shaft Size (inch) - 2.4375
Description - P2B-LT7-207
Weight (lbs) - 10.1
Used on Frame - LD-40

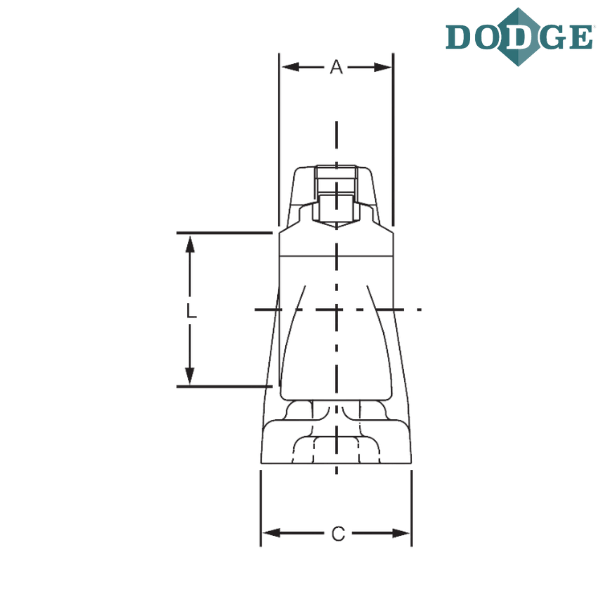

Length Through Bore (A) inch - 1.8125

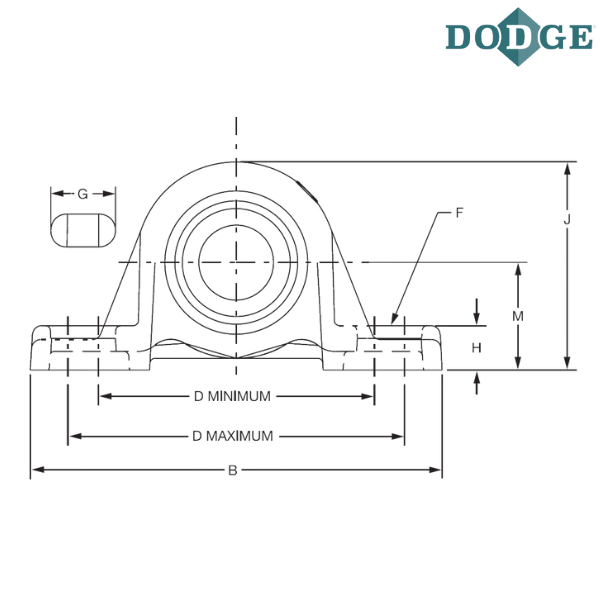

Overall Length (B) inch - 9.5
Width (C) inch - 2.375
Bolt to Bolt Minimum Distance (D min) inch - 6.875
Bolt to Bolt Maximum Distance (D max) inch - 7.9375
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21875
H (inch) - 0.875
Overall Height (J) inch - 5.40625
L (inch) - 3.5
Base to Center Height (M) inch - 2.75

Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
207 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
