033684 DODGE - P2B-LT7-203

Brand - DODGE
Item Number - 033684 DODGE - P2B-LT7-203
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 211
Shaft Size (inch) - 2.1875
Description - P2B-LT7-203
Weight (lbs) - 8
Used on Frame - LD-40

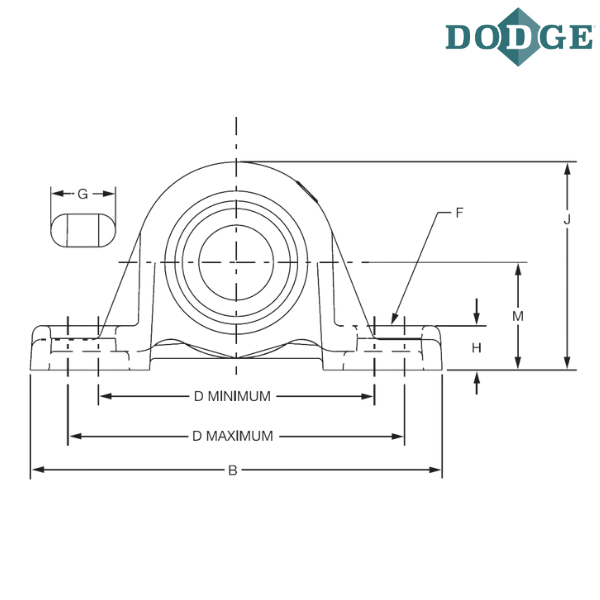

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 8.875
Width (C) inch - 2.3125
Bolt to Bolt Minimum Distance (D min) inch - 6.375
Bolt to Bolt Maximum Distance (D max) inch - 7.4375
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21875
H (inch) - 0.875
Overall Height (J) inch - 4.96875
L (inch) - 3.125
Base to Center Height (M) inch - 2.5

Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

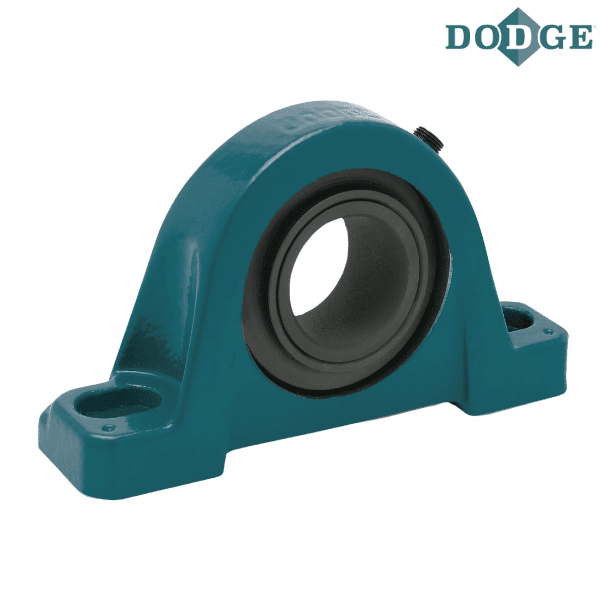

** Images are for representation purposes only
