033680 DODGE - P2B-LT7-111

Brand - DODGE
Item Number - 033680 DODGE - P2B-LT7-111
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 209
Shaft Size (inch) - 1.6875
Description - P2B-LT7-111
Weight (lbs) - 6
Used on Frame - LD-20

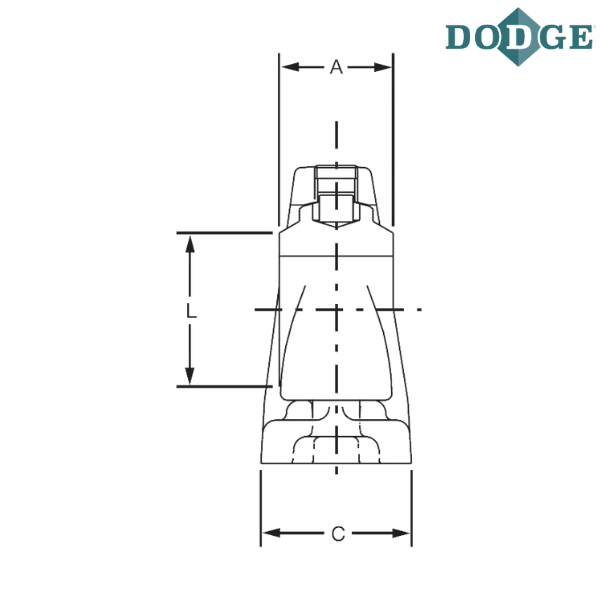

Length Through Bore (A) inch - 1.5625

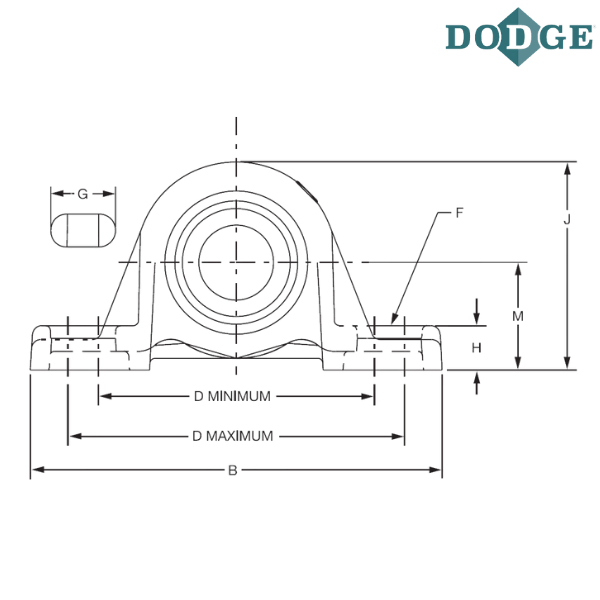

Overall Length (B) inch - 7.4375
Width (C) inch - 2
Bolt to Bolt Minimum Distance (D min) inch - 5.5
Bolt to Bolt Maximum Distance (D max) inch - 6.1875
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.90625
H (inch) - 0.75
Overall Height (J) inch - 4.28125
L (inch) - 2.5625
Base to Center Height (M) inch - 2.125

Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
111 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

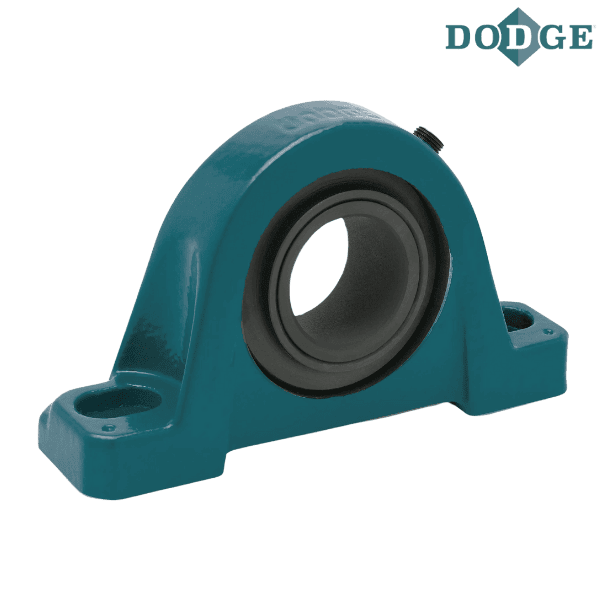

** Images are for representation purposes only
