033668 DODGE - P2B-LT7-014

Brand - DODGE
Item Number - 033668 DODGE - P2B-LT7-014
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 205
Shaft Size (inch) - 0.875
Description - P2B-LT7-014
Weight (lbs) - 1.6
Used on Frame - LD-10

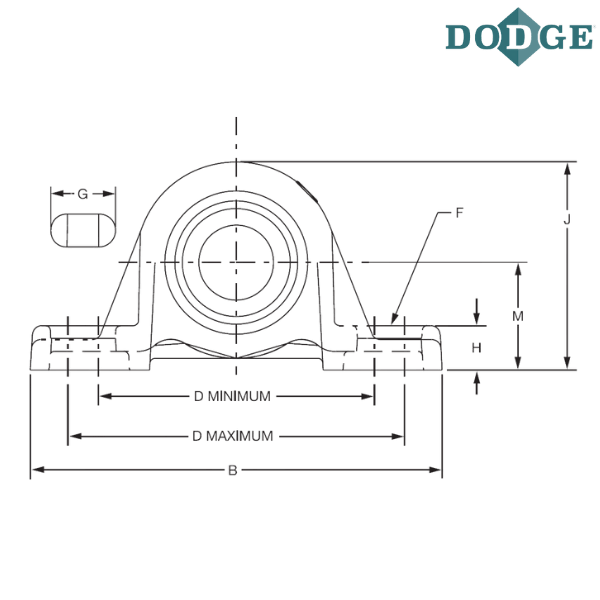

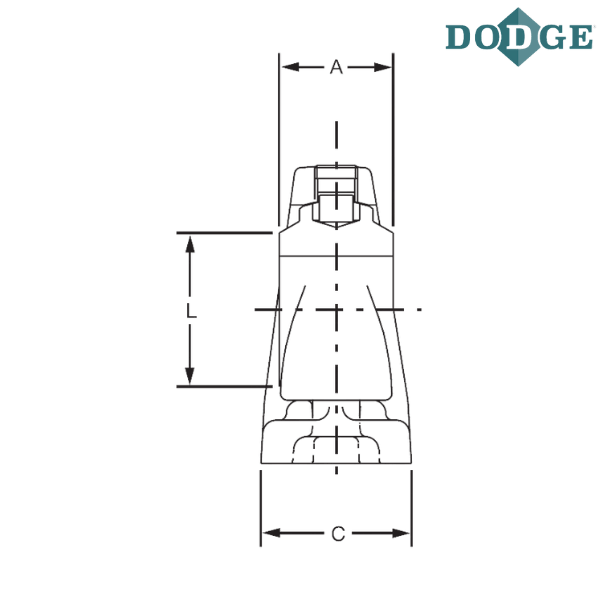

Length Through Bore (A) inch - 1.0625
Overall Length (B) inch - 5.5
Width (C) inch - 1.40625
Bolt to Bolt Minimum Distance (D min) inch - 3.6875
Bolt to Bolt Maximum Distance (D max) inch - 4.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.84375
H (inch) - 0.59375
Overall Height (J) inch - 2.78125
L (inch) - 1.5625
Base to Center Height (M) inch - 1.4375

Notes :

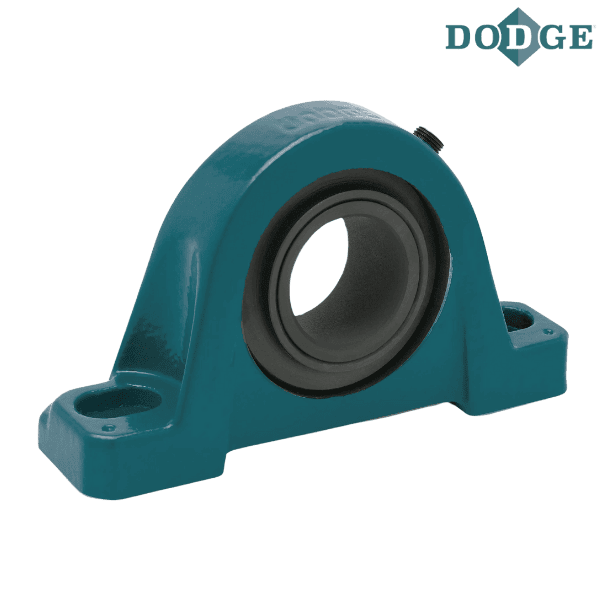

P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
014 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
