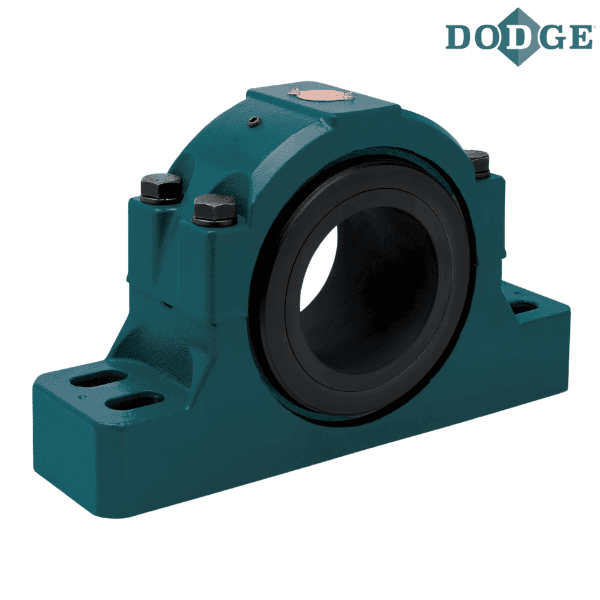

033525 DODGE - P4B-MM7-415

Brand - DODGE
Item Number - 033525 DODGE - P4B-MM7-415
Category - Sleeve Bearings - SOLIDLUBE MM Pillow Blocks (700 Series)
Shaft Size (inch) - 4.9375
Description - P4B-MM7-415
Weight (lbs) - 92
Used On Frame - HD-400

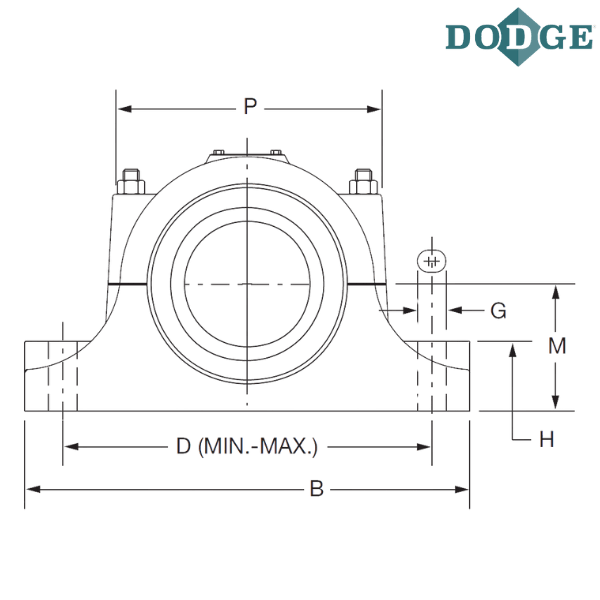

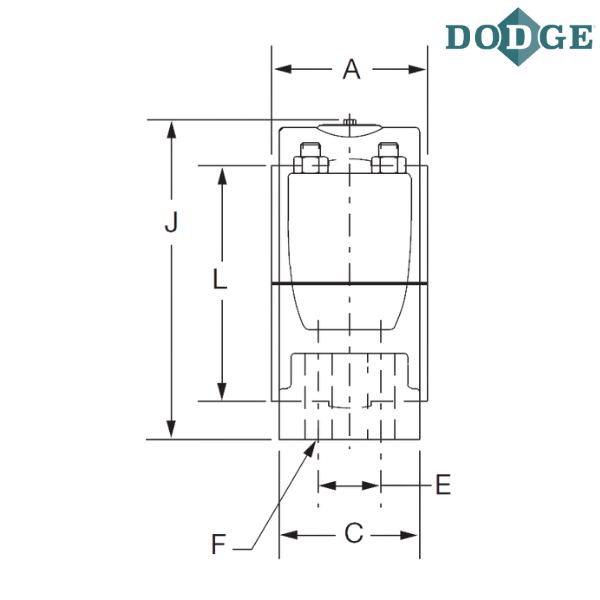

Length Through Bore (A) inch - 5
Overall Length (B) inch - 17.4375
Thickness (C) inch - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 13.125
Bolt to Bolt Maximum Distance (D max) inch - 14.75
E (inch) - 2
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.6875
H (inch) - 2.75
J (inch) - 10.5
L (inch) - 7.5625
Base to Center Height (M) inch - 5
P (inch) - 10.625

Notes :
P4B - Pillow Block, 4 Bolt Base
MM7 - SOLIDLUBE MM700 Series
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
