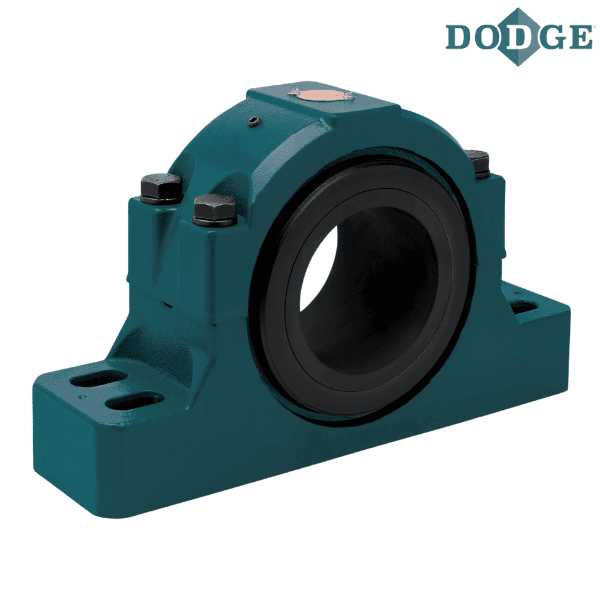

033500 DODGE - P2B-MM7-407

Brand - DODGE
Item Number - 033500 DODGE - P2B-MM7-407
Category - Sleeve Bearings - SOLIDLUBE MM Pillow Blocks (700 Series)
Shaft Size (inch) - 4.4375
Description - P2B-MM7-407
Weight (lbs) - 60
Used On Frame - HD-350

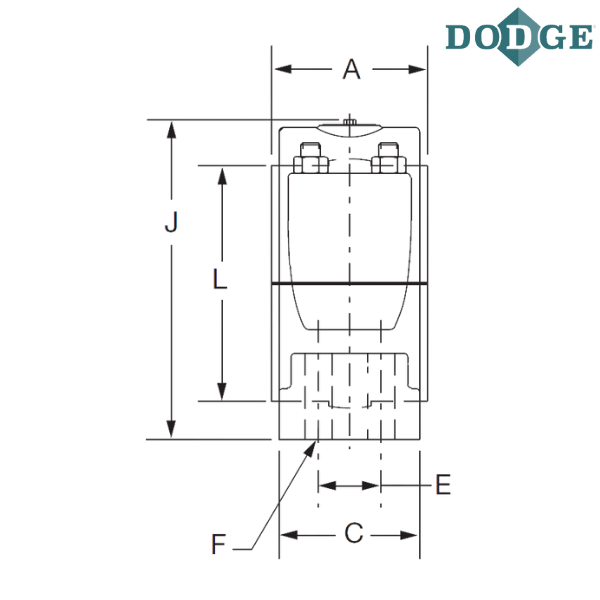

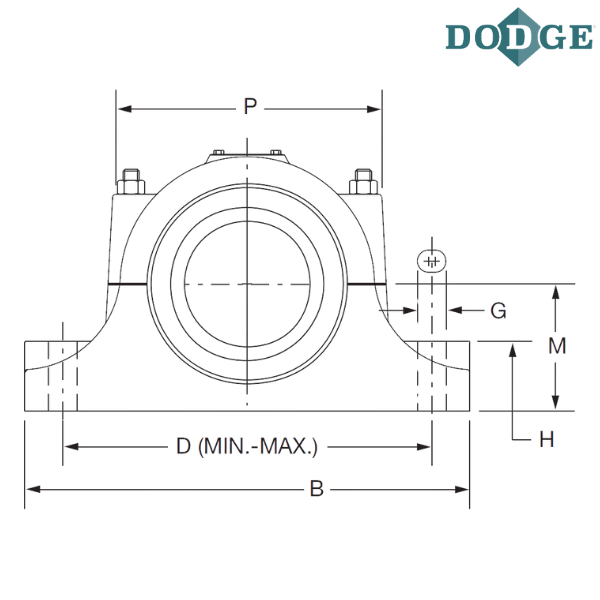

Length Through Bore (A) inch - 4.5
Overall Length (B) inch - 16
Thickness (C) inch - 3.4375
Bolt to Bolt Minimum Distance (D min) inch - 12.8125
Bolt to Bolt Maximum Distance (D max) inch - 13.8125
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 2.25
J (inch) - 9.4375
L (inch) - 6.9375
Base to Center Height (M) inch - 4.5
P (inch) - 10

Notes :
P2B - Pillow Block, 2 Bolt Base
MM7 - SOLIDLUBE MM700 Series
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
