Description
Brand - DODGE
Item Number - 033351 DODGE - P2B-MM10-308
Category - Sleeve Bearings - SOLIDLUBE MM Pillow Blocks (1000 Series)
Shaft Size (inch) - 3.5
Description - P2B-MM10-308
Weight (lbs) - 22.8
Used On Frame - HD-250

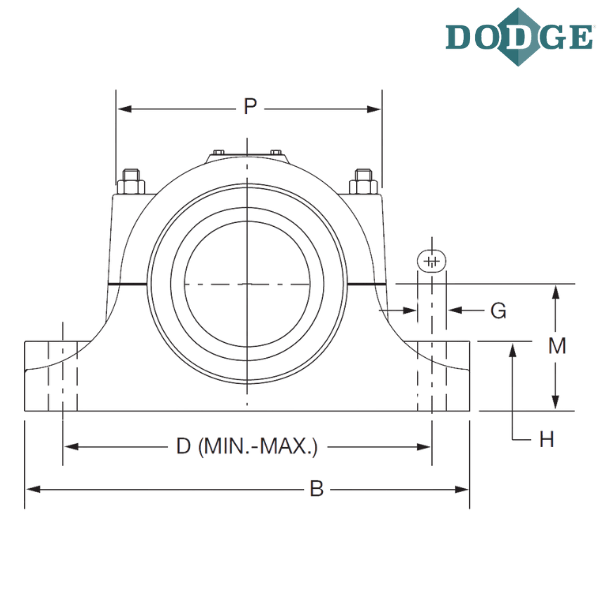

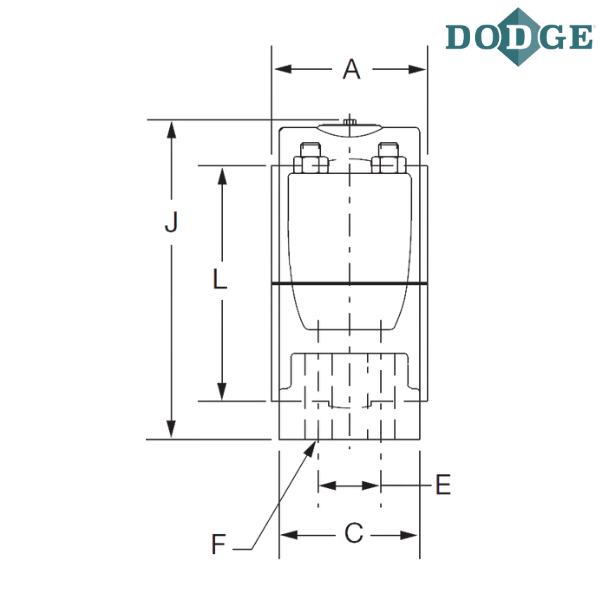

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 12
Thickness (C) inch - 2.8125
Bolt to Bolt Minimum Distance (D min) inch - 9.25
Bolt to Bolt Maximum Distance (D max) inch - 10.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.75
J (inch) - 7
L (inch) - 4.875
Base to Center Height (M) inch - 3.25
P (inch) - 7.25
Notes :
P2B - Pillow Block, 2 Bolt Base
MM10 - SOLIDLUBE MM1000 Series
308 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

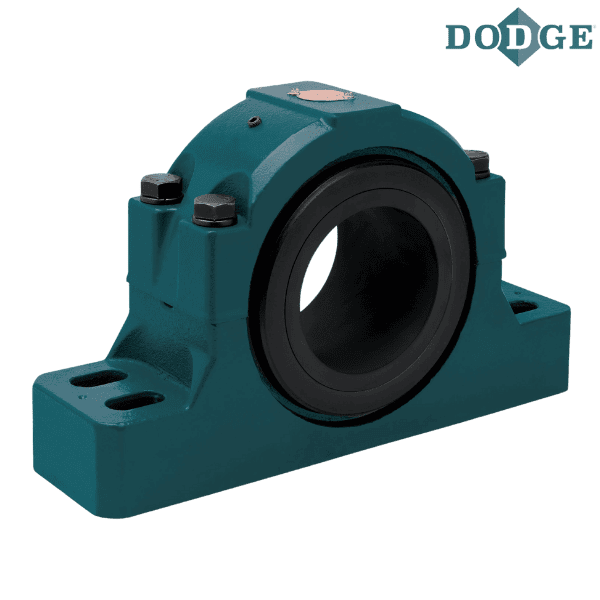

** Images are for representation purposes only
