Description
Brand - DODGE
Item Number - 033277 DODGE - F4B-LT7-215
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 215
Shaft Size (inch) - 2.9375
Description - F4B-LT7-215
Weight (lbs) - 18

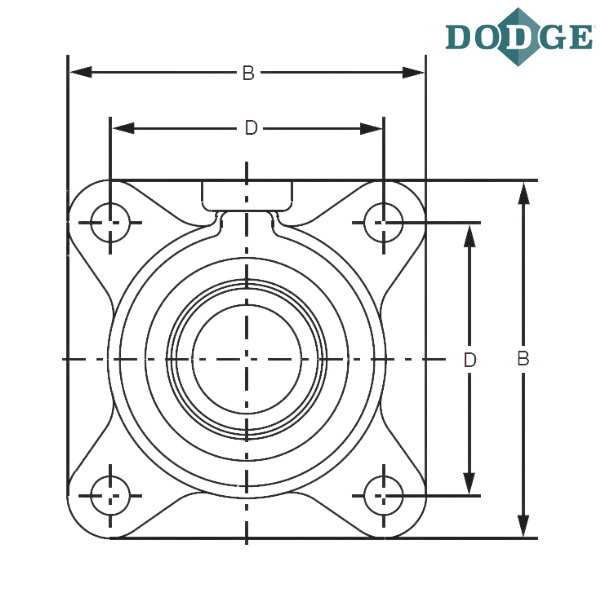

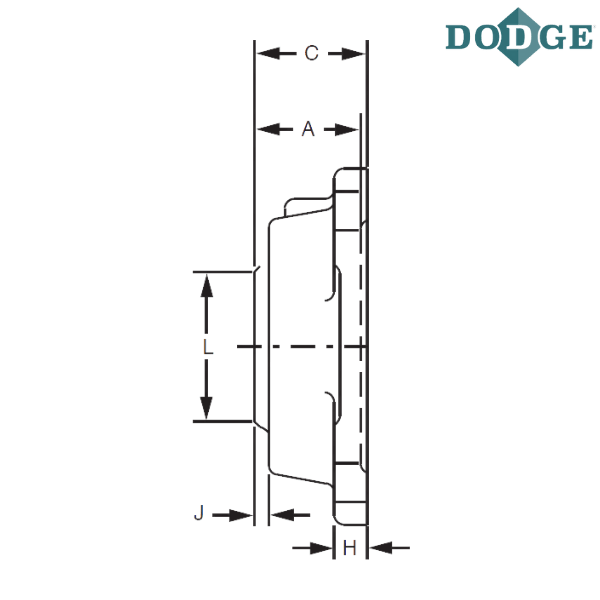

Length Through Bore (A) inch - 2.71875
Overall Length (B) inch - 7.75
Thickness (C) inch - 2.75
Bolt Center to Center Length (D) inch - 6
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
J (inch) - 0.53125
L (inch) - 0.53125
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
215 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

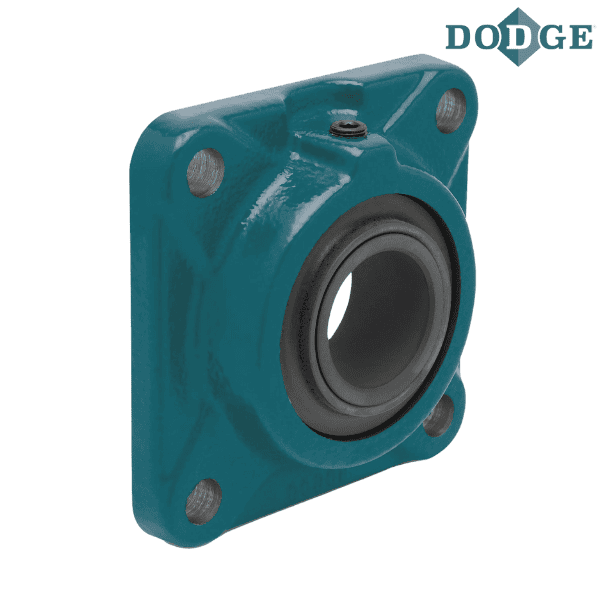

** Images are for representation purposes only
