Description
Brand - DODGE
Item Number - 033268 DODGE - F4B-LT7-107

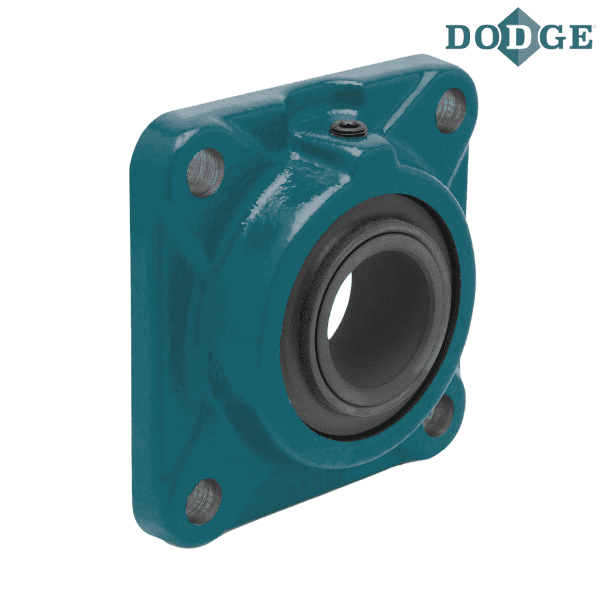

Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 207
Shaft Size (inch) - 1.4375
Description - F4B-LT7-107
Weight (lbs) - 3.9

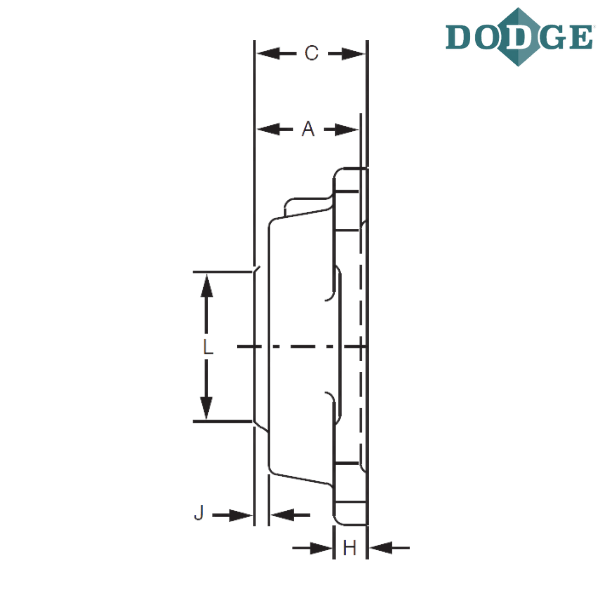

Length Through Bore (A) inch - 1.21875

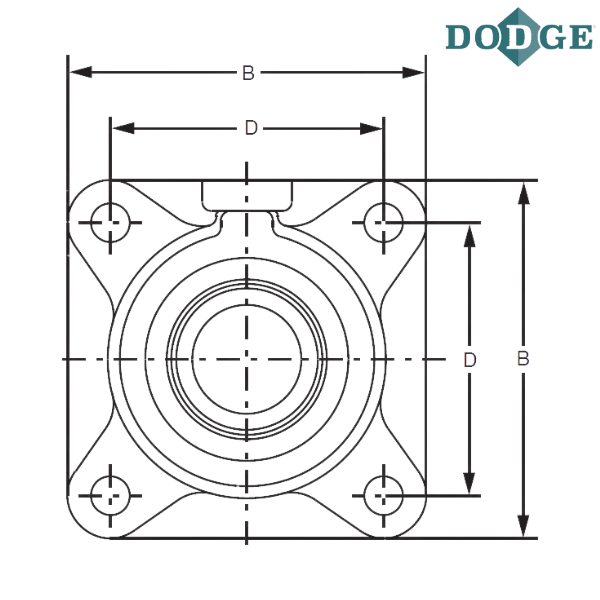

Overall Length (B) inch - 4.75
Thickness (C) inch - 1.375
Bolt Center to Center Length (D) inch - 3.625
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.5625
J (inch) - 0.15625
L (inch) - 0.15625
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
107 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
