Description
Brand - DODGE
Item Number - 033218 DODGE - F4B-LT10-300
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (1000 Series)
Series - 215
Shaft Size (inch) - 3
Description - F4B-LT10-300
Weight (lbs) - 17.7

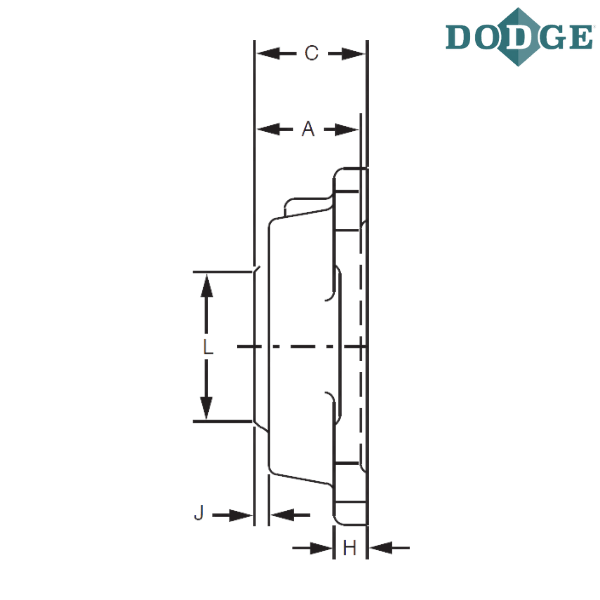

Length Through Bore (A) inch - 2.71875

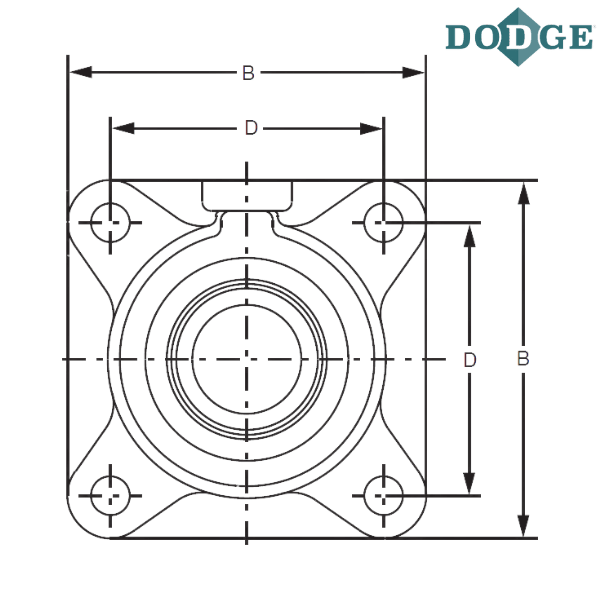

Overall Length (B) inch - 7.75
Thickness (C) inch - 2.75
Bolt Center to Center Length (D) inch - 6
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
J (inch) - 0.53125
L (inch) - 0.53125
Notes :
F4B - Flange, 4 Bolt
LT10 - SOLIDLUBE LT 1000 Series
300 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

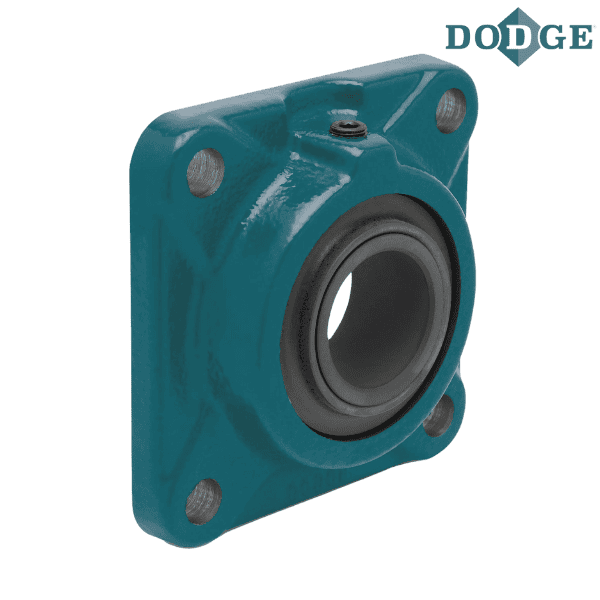

** Images are for representation purposes only
