Description
Brand - DODGE
Item Number - 033200 DODGE - F4B-LT10-012
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (1000 Series)
Series - 204
Shaft Size (inch) - 0.75
Description - F4B-LT10-012
Weight (lbs) - 1.5

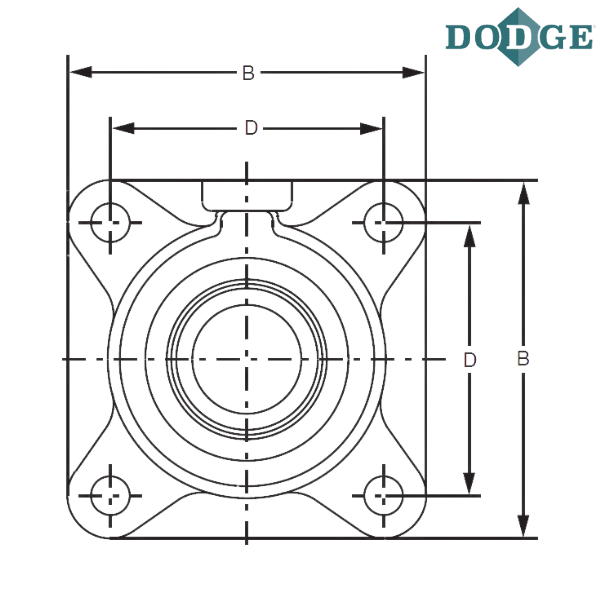

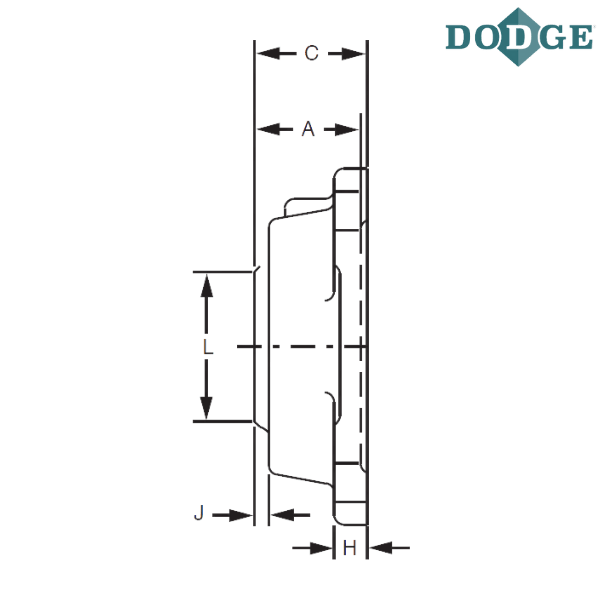

Length Through Bore (A) inch - 0.90625
Overall Length (B) inch - 3.375
Thickness (C) inch - 1.125
Bolt Center to Center Length (D) inch - 2.5
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.4375
J (inch) - 0.15625
L (inch) - 0.15625
Notes :
F4B - Flange, 4 Bolt
LT10 - SOLIDLUBE LT 1000 Series
012 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

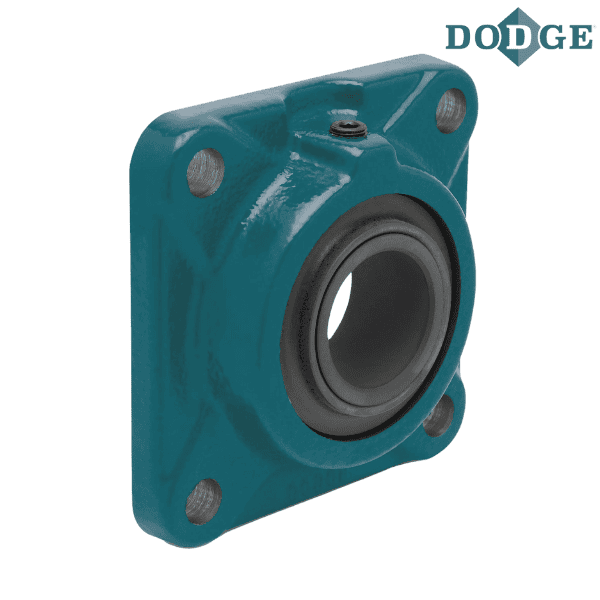

** Images are for representation purposes only
