033097 DODGE - F2B-LT7-115

Brand - DODGE
Item Number - 033097 DODGE - F2B-LT7-115
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 210
Shaft Size (inch) - 1.9375
Description - F2B-LT7-115
Weight (lbs) - 5.4

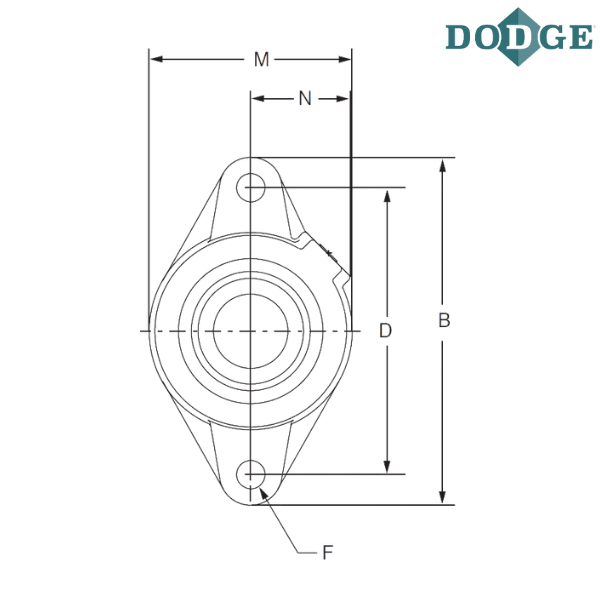

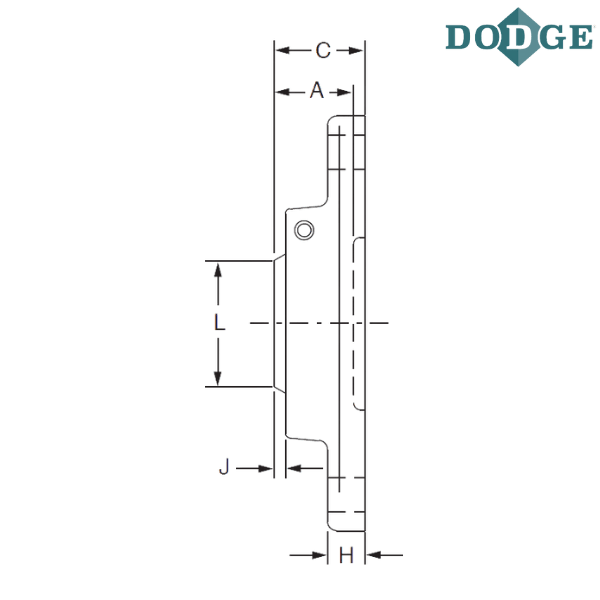

Length Through Bore (A) inch - 1.40625
Overall Length (B) inch - 7.4375
Thickness (C) inch - 1.65625
Bolt Center to Center Length (D) inch - 1.65625
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.625
J (inch) - 0.1875
L (inch) - 2.8125
Overall Width (M) inch - 4.28125
N (inch) - 2.03125

Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

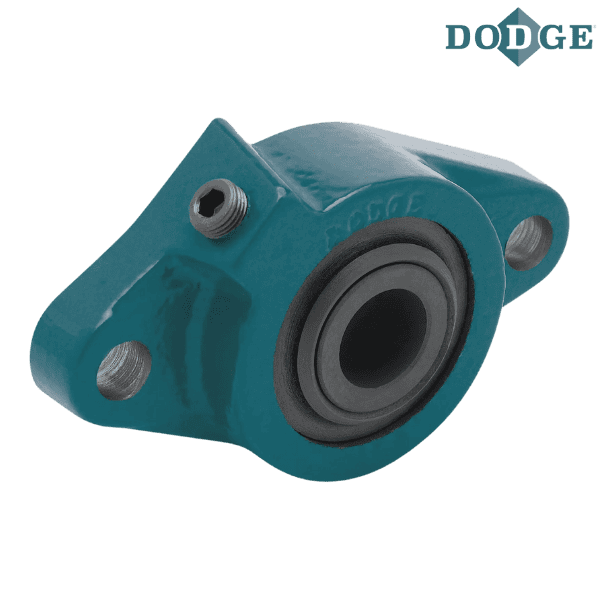

** Images are for representation purposes only
