033095 DODGE - F2B-LT7-111

Brand - DODGE
Item Number - 033095 DODGE - F2B-LT7-111

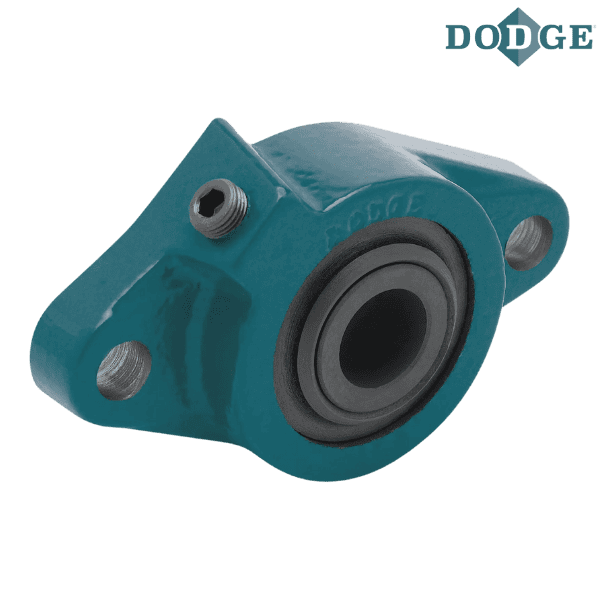

Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 209
Shaft Size (inch) - 1.6875
Description - F2B-LT7-111
Weight (lbs) - 4.9

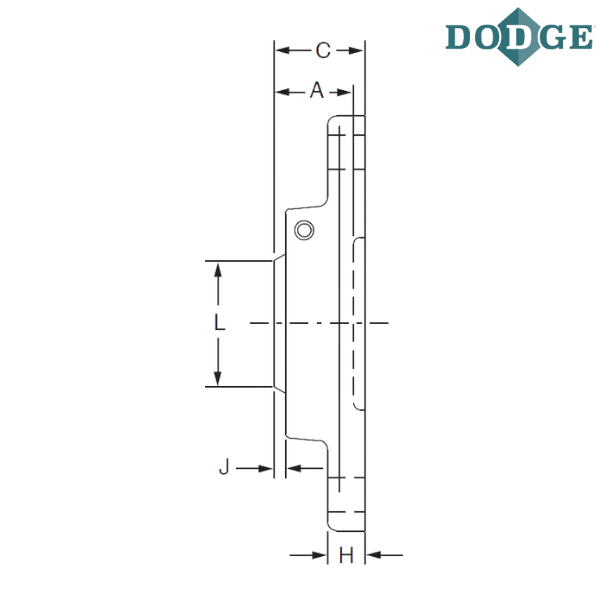

Length Through Bore (A) inch - 1.328125

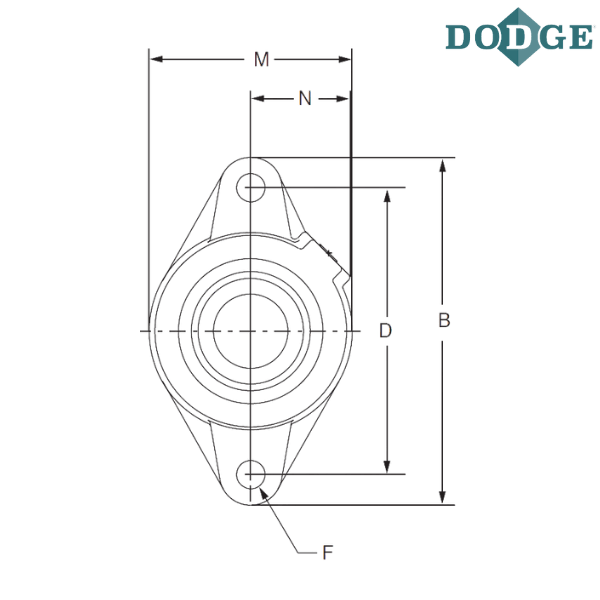

Overall Length (B) inch - 7.0625
Thickness (C) inch - 1.59375
Bolt Center to Center Length (D) inch - 1.59375
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.625
J (inch) - 0.1875
L (inch) - 2.5625
Overall Width (M) inch - 4.375
N (inch) - 1.90625

Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
111 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
