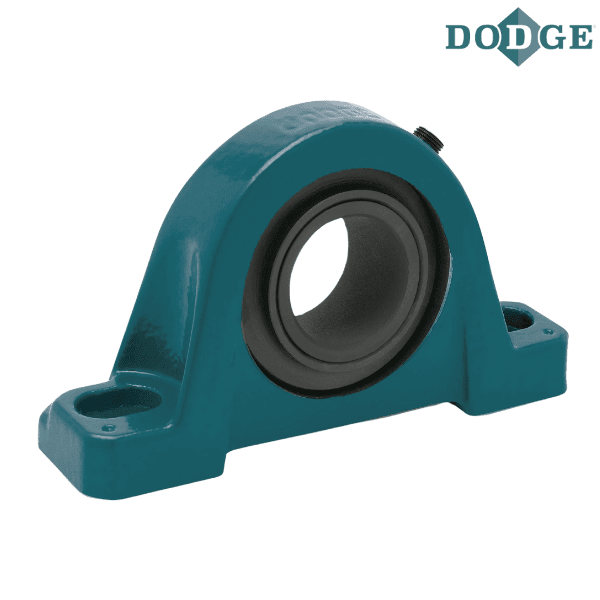

033077 DODGE - P2B-LT7-300

Brand - DODGE
Item Number - 033077 DODGE - P2B-LT7-300
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 215
Shaft Size (inch) - 3
Description - P2B-LT7-300
Weight (lbs) - 20.9
Used on Frame - LD-45

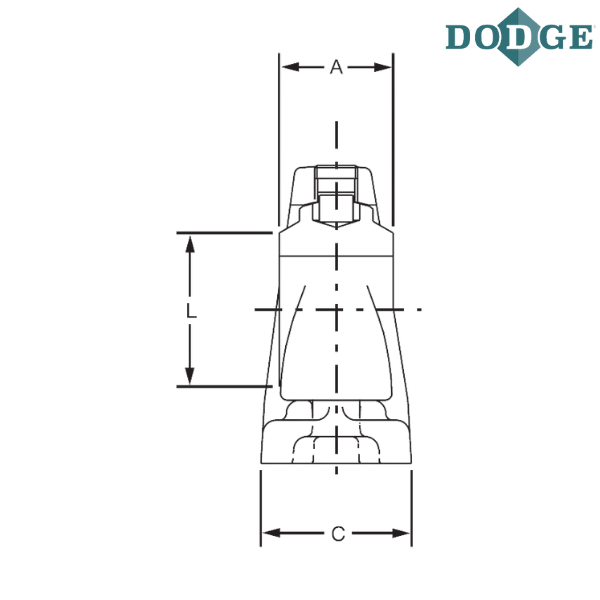

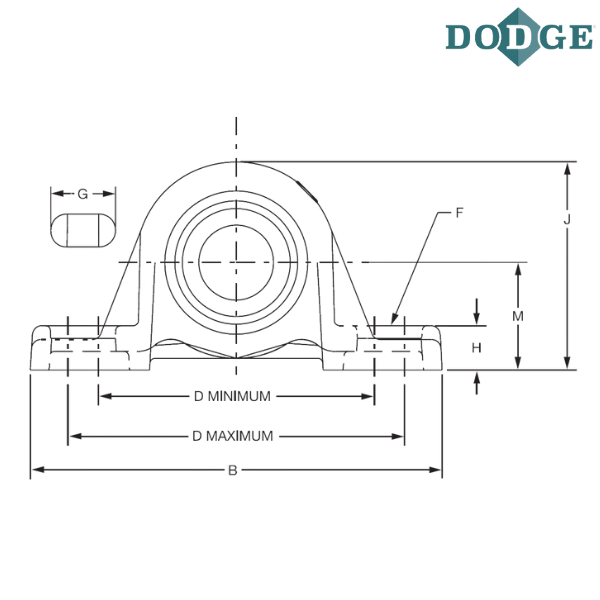

Length Through Bore (A) inch - 2.71875
Overall Length (B) inch - 11.75
Width (C) inch - 2.875
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Maximum Distance (D max) inch - 9.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.4375
H (inch) - 1
Overall Height (J) inch - 6.75
L (inch) - 3.9375
Base to Center Height (M) inch - 3.5

Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
300 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
