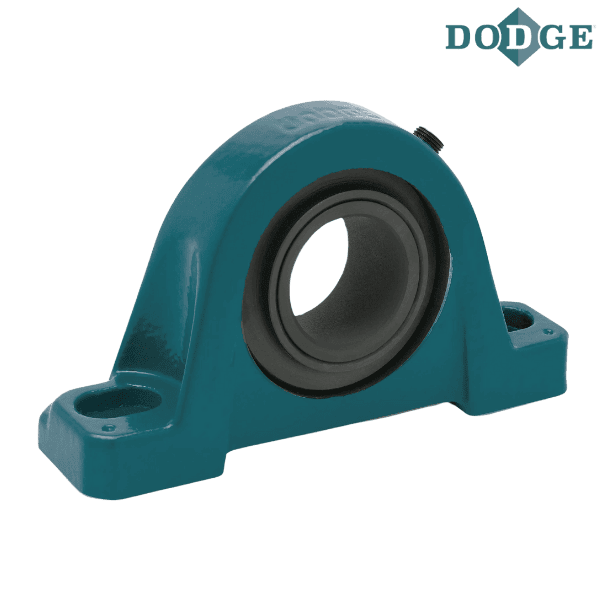

032970 DODGE - P2B-LTB10-012

Brand - DODGE
Item Number - 032970 DODGE - P2B-LTB10-012
Category - Sleeve Bearings - SOLIDLUBE (1000 Series)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-LTB10-012
Weight (lbs) - 1.6
Used on Frame - LD-10

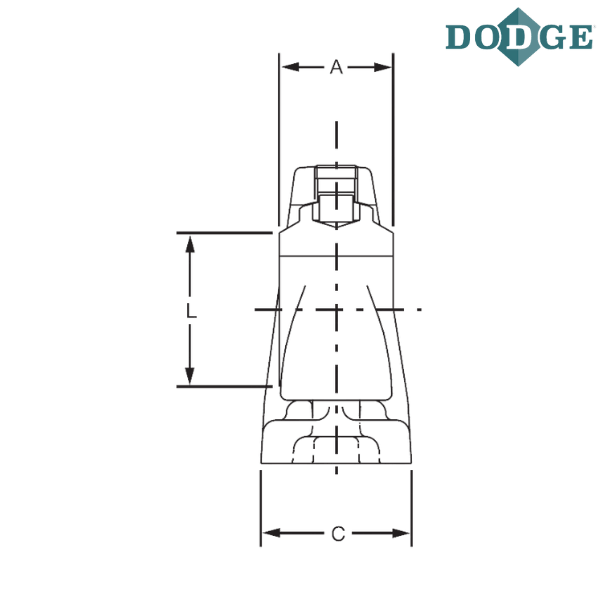

Length Through Bore (A) inch - 1

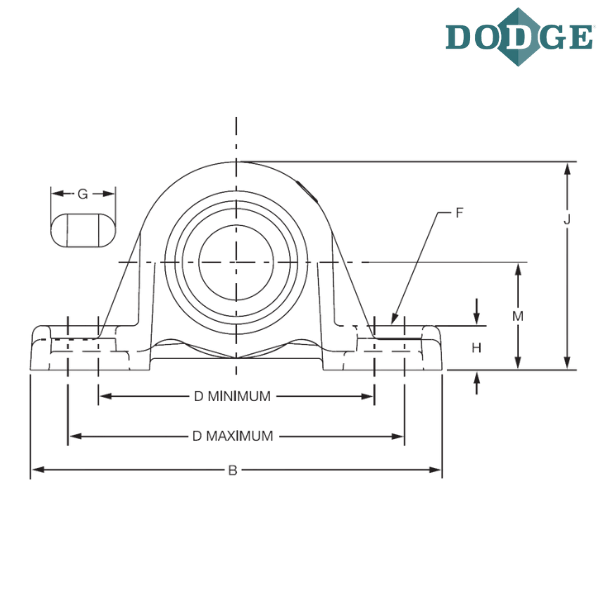

Overall Length (B) inch - 5.25
Width (C) inch - 1.34375
Bolt to Bolt Minimum Distance (D min) inch - 3.375
Bolt to Bolt Maximum Distance (D max) inch - 4.1875
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.84375
H (inch) - 0.46875
Overall Height (J) inch - 2.5
L (inch) - 1.375
Base to Center Height (M) inch - 1.25

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB10 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT1000 Series
012 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
