032960 DODGE - P2B-LTB7-208

Brand - DODGE
Item Number - 032960 DODGE - P2B-LTB7-208
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 212
Shaft Size (inch) - 2.5
Description - P2B-LTB7-208
Weight (lbs) - 7.8
Used on Frame - LD-40

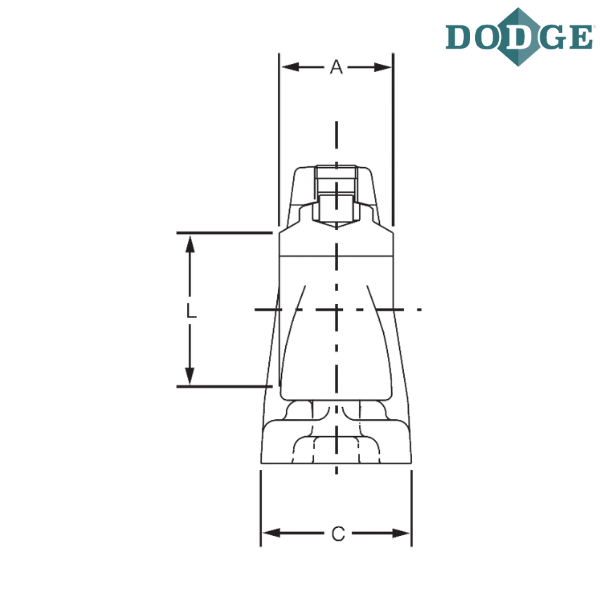

Length Through Bore (A) inch - 1.8125
Overall Length (B) inch - 9.5
Width (C) inch - 2.375
Bolt to Bolt Minimum Distance (D min) inch - 6.875
Bolt to Bolt Maximum Distance (D max) inch - 7.9375
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21875
H (inch) - 0.8125
Overall Height (J) inch - 5.34375
L (inch) - 3.5
Base to Center Height (M) inch - 2.6875

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
208 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

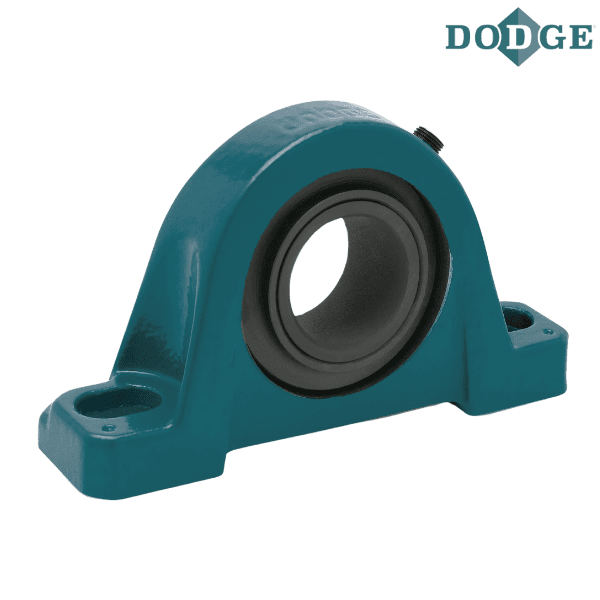

** Images are for representation purposes only
