032956 DODGE - P2B-LTB7-200

Brand - DODGE
Item Number - 032956 DODGE - P2B-LTB7-200
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 210
Shaft Size (inch) - 2
Description - P2B-LTB7-200
Weight (lbs) - 5.8
Used on Frame - LD-30

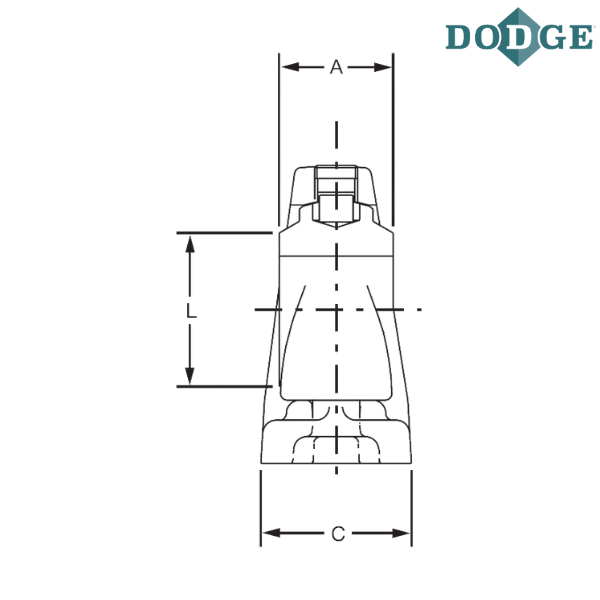

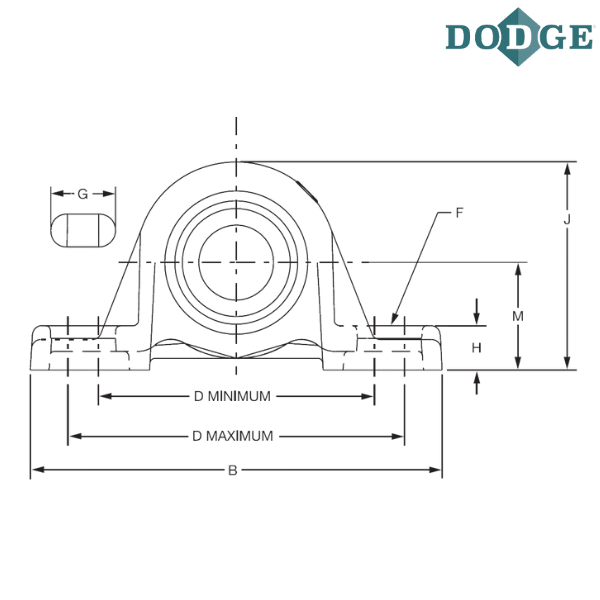

Length Through Bore (A) inch - 1.625
Overall Length (B) inch - 8.125
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Maximum Distance (D max) inch - 6.6875
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.03125
H (inch) - 0.6875
Overall Height (J) inch - 4.46875
L (inch) - 2.8125
Base to Center Height (M) inch - 2.1875

Notes :

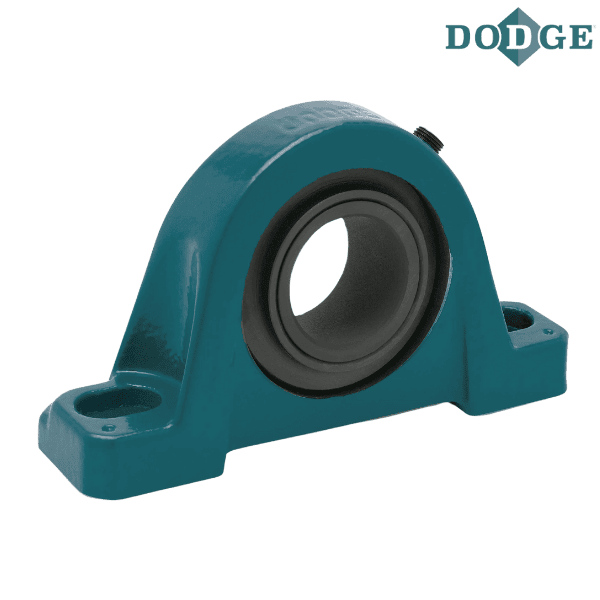

P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
200 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
