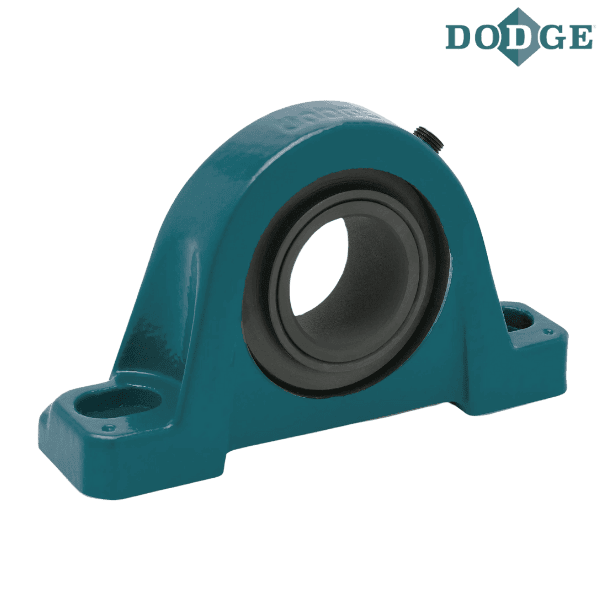

032946 DODGE - P2B-LTB7-103

Brand - DODGE
Item Number - 032946 DODGE - P2B-LTB7-103
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 206
Shaft Size (inch) - 1.1875
Description - P2B-LTB7-103
Weight (lbs) - 2.6
Used on Frame - LD-20

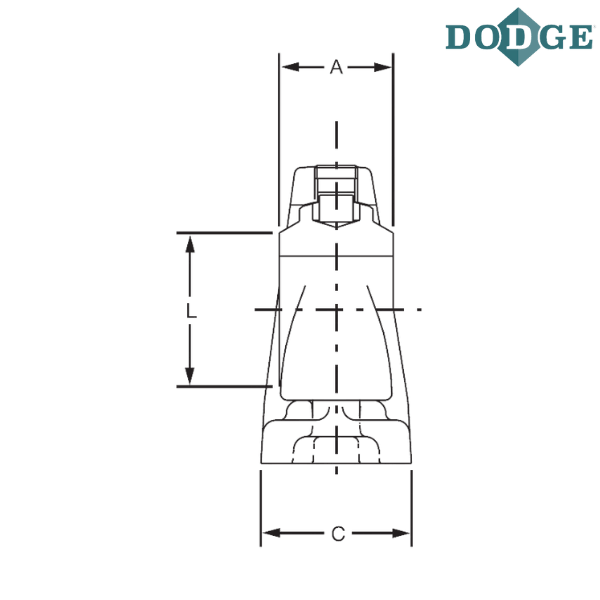

Length Through Bore (A) inch - 1.1875

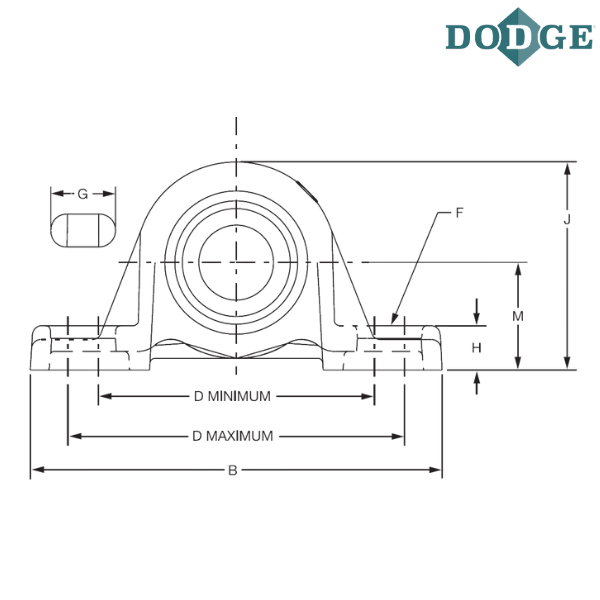

Overall Length (B) inch - 6.25
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.9375
H (inch) - 0.625
Overall Height (J) inch - 3.1875
L (inch) - 1.8125
Base to Center Height (M) inch - 1.5625

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
103 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
