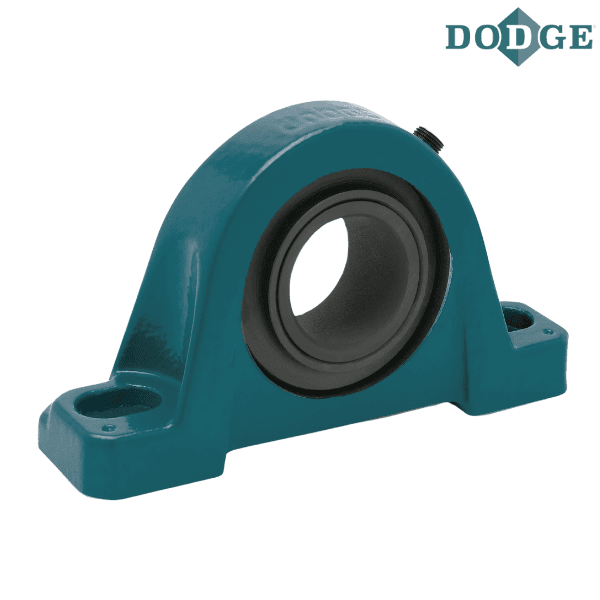

032943 DODGE - P2B-LTB7-100

Brand - DODGE
Item Number - 032943 DODGE - P2B-LTB7-100
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 205
Shaft Size (inch) - 1
Description - P2B-LTB7-100
Weight (lbs) - 1.3
Used on Frame - LD-10

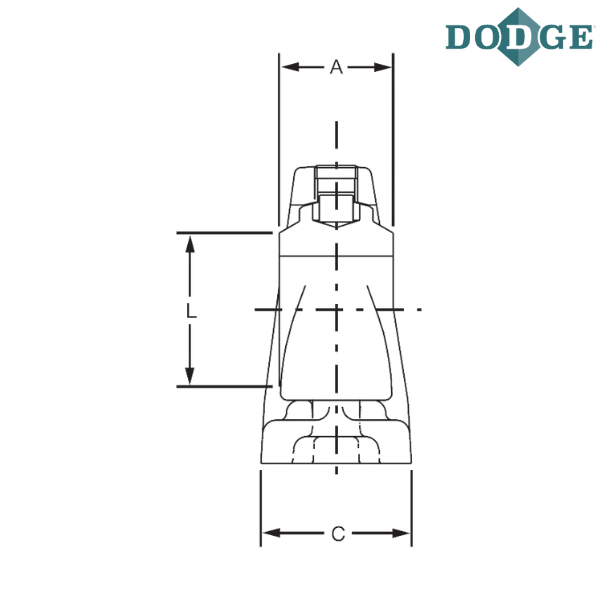

Length Through Bore (A) inch - 1.0625

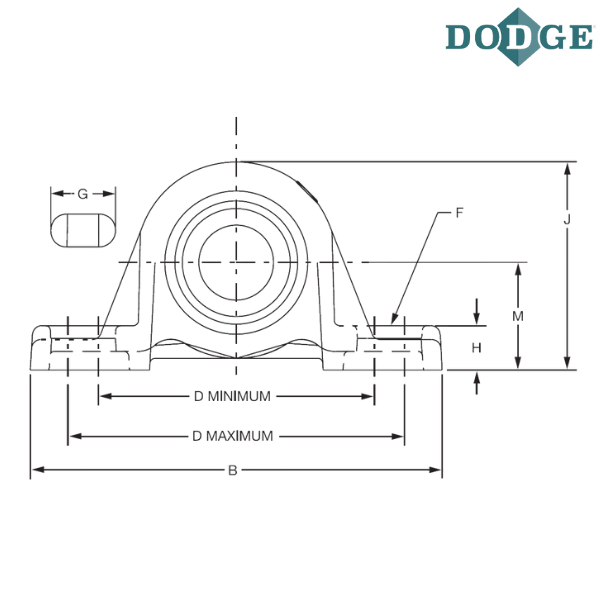

Overall Length (B) inch - 5.5
Width (C) inch - 1.40625
Bolt to Bolt Minimum Distance (D min) inch - 3.6875
Bolt to Bolt Maximum Distance (D max) inch - 4.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.84375
H (inch) - 0.46875
Overall Height (J) inch - 2.65625
L (inch) - 1.5625
Base to Center Height (M) inch - 1.3125

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
100 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
