Description
Brand - DODGE
Item Number - 032882 DODGE - INS-PS-40M

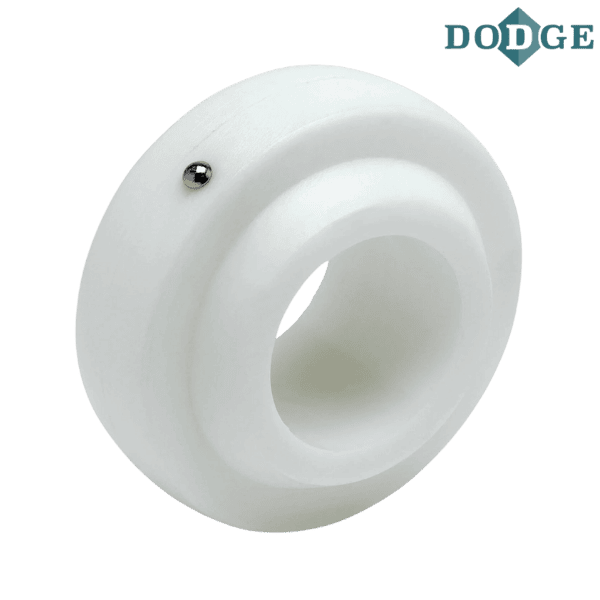

Category - E-Z Kleen Mounted Bearings (PSEZ Polymer Sleeve Bearing Inserts)
Series - 208
Shaft Size (mm) - 40
Description - INS-PS-40M
Weight (kg) - 0.21

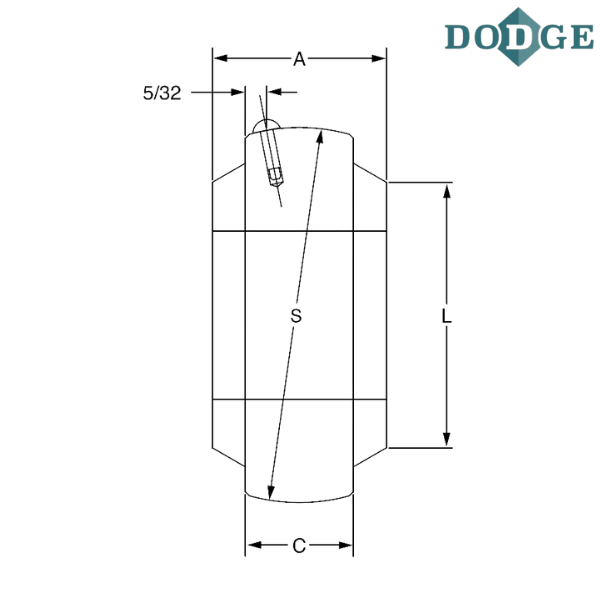

A (mm) - 38.1
C (mm) - 22.2
L (mm) - 50.8
S (mm) - 79.8576/79.6790
Notes :
INS - Insert
PS - Polymer Sleeve Insert
M - Metric
** Images are for representation purposes only
