Brand - TIMKEN
Item Number - 02476/02420A TIMKEN
Also Known As - 02476 - 02420A
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 68.262
Outer Diameter (D) inch - 2.6875
Width (T) mm - 21
Width (T) inch - 0.8268
Dynamic Load Rating (C1) N - 63800
Dynamic Load Rating (C1) lbf - 14300
Factor (e) - 0.42
Factor (Y) - 1.44
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 16500
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3720
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 11800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2650
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.4
Basic Static Radial Load Rating (C0) N - 70200
Basic Static Radial Load Rating (C0) lbf - 15800
Cone Width (B) mm - 22.225
Cone Width (B) inch - 0.875
Cup Width (C) mm - 16.238
Cup Width (C) inch - 0.6393
Effective Center Location (a) mm - -5.1
Effective Center Location (a) inch - -0.2
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03

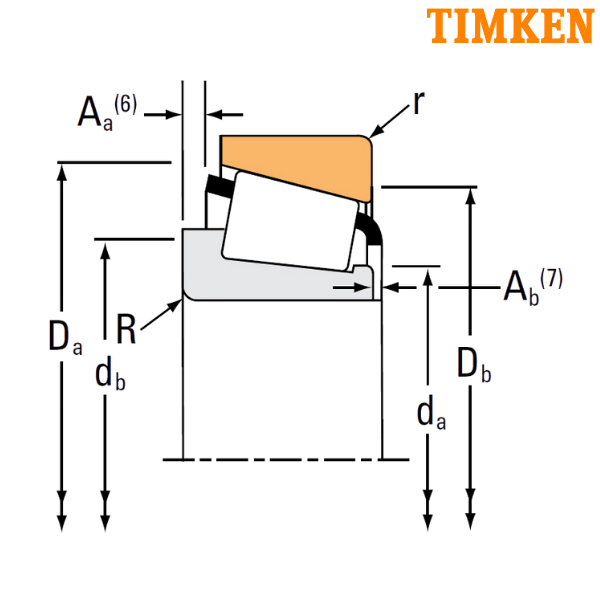

Cone Frontface Backing Diameter (da) mm - 38.5
Cone Frontface Backing Diameter (da) inch - 1.52
Cone Backface Backing Diameter (db) mm - 39
Cone Backface Backing Diameter (db) inch - 1.54
Max Housing Fillet Radius (r) mm - 1.5
Max Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 63
Cup Frontface Backing Diameter (Da) inch - 2.48
Cup Backface Backing Diameter (Db) mm - 59
Cup Backface Backing Diameter (Db) inch - 2.32
Cage-Cone Backface Clearance (Aa) mm - 1.1
Cage-Cone Backface Clearance (Aa) inch - 0.04
Cage-Cone Frontface Clearance (Ab) mm - 0.9
Cage-Cone Frontface Clearance (Ab) inch - 0.04
Geometry Factor (G1) - 17.5
Geometry Factor (G2) - 8.5
Geometry Factor (Cg) - 0.0681
Weight (kg) - 0.37
Weight (lbs) - 0.81
Inner Part Number - 02476
Outer Part Number - 02420A
TS - Single Row Tapered Roller Bearing
